Keystone KT-CBLED35PS-22C-8CSA-VDIM 2 x 2 - Power and Color Select

0-10V Dimmable - 120-277 Volt - LED Center Basket Troffer
(No reviews yet) Write a Review
SKU:31157
UPC:843654164724
MPN:KT-CBLED35PS-22C-8CSA-VDIM
Condition:New
Shipping:Free Shipping
    • Field adjustable power switch to select between 24W, 30W, and 35W outputs.
    • Comes with a field-adjustable CCT switch that allows you to choose between 3500K, 4000K, and 5000K color temperatures.
    • Powered by Keystone 0 –10V dimming LED drivers with 12V Aux.
    • Low-profile design is IC rated for direct contact with ceiling insulation.
    • Compatible with Keystone SmartSafe emergency backups.
    • Designed for use in T-bar grids.
    • Long-life, high-efficacy LEDs with a 100,000 life hour rating.
    • Excellent replacement for 2-lamp 17 Watt (T8) fluorescent fixtures.
    • 5-year, limited manufacturer warranty.
    • Keystone-KT-CBLED35PS-22C-8CSA-VDIM-image-01

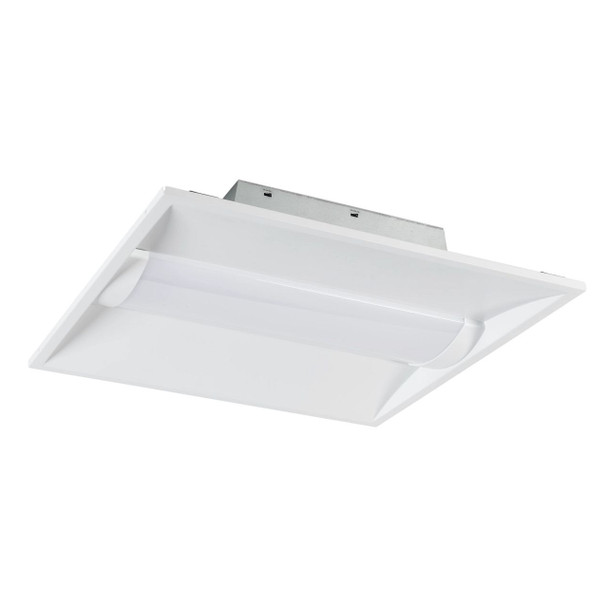

    • Keystone-KT-CBLED35PS-22C-8CSA-VDIM-image-02
    • Keystone-KT-CBLED35PS-22C-8CSA-VDIM-image-03
    • Keystone-KT-CBLED35PS-22C-8CSA-VDIM-image-04
    $70.98
    Frequently bought together:

    Description

    Convert old fluorescent prismatic troffers to LED with our center baskets. They’re architectural-grade fixtures with features that allow you to customize your environment as well as save energy: field-adjustable Power and Color Select technology, available Controls Ready sensor connections, and reliability ensured by a Keystone power supply. Easy to install, easy to maintain, easy to control, easy on the eyes. That’s Light Made Easy®.

    Adjust the wattage of the fixture to optimize maximum brightness. Select between 24 watt, 30 watt, and 35 watt settings. Can be dimmed down for further control with 0-10V dimming.
    Change the look and feel of your fixture by switching the color temperature. Each fixture comes with a switch that selects between 3500K neutral white, 4000K cool white, and 5000K daylight color temperatures.
    Dependability, service, and energy efficiency – that’s Keystone. Our drivers are 100% end-of-line tested, rugged, and reliable. They feature 0-10V dimming and offer ample surge protection for increased versatility and durability, and with one manufacturer behind both driver and fixture, you get guaranteed performance.

    Listings & Certifications

    UL

    logo of the Underwriters Laboratory

    RoHS

    logo of RoHS

    DLC

    DLC logo
    View AllClose

    Warranty Information

    View AllClose

    Additional Information

    View AllClose

    Specifications

    Manufacturer:
    Keystone Technologies
    Brand / Product Series:
    Keystone
    MPN:
    KT-CBLED35PS-22C-8CSA-VDIM
    Model:
    KT-CBLED35PS-22C-8CSA-VDIM
    Wattage:
    24/30/35 Watt
    Equivalent:
    2-lamp 17 Watt (T8) Watt
    Lumens:
    3,120-4,550
    Efficacy:
    130 lumens / Watt
    Color Temperature (CCT):
    3500/4000/5000 Kelvin
    Life Rating:
    100,000 Hours
    CRI:
    80+
    Voltage:
    120/208/240/277
    Frequency:
    N/A
    Power Factor:
    >0.95
    THD:
    <20%
    Operating Temperature:
    -4°F to 104°F
    Dimmable:
    Yes, 0-10V
    Options:
    Standard
    Mounting:
    T-Grid
    Housing Material:
    Metal
    Finish:
    White
    Lens Material:
    Plastic
    IP Rating:
    N/A
    Location Rating:
    N/A
    Size:
    2 x 2
    Length:
    23.74 in.
    Width:
    23.74 in.
    Height:
    1.97 in.
    UL:
    Yes
    ETL:
    No
    RoHS:
    No
    Energy Star:
    No
    Fire Rated:
    No
    FCC:
    Yes
    Air Tight:
    No
    NEC:
    No
    IC:
    Yes
    Title 20:
    No
    Title 24:
    No
    DLC:
    Yes
    DLC ID:
    S-T0T3HF
    Warranty:
    5-Year Manufacturer

    Warranty

    Keystone Technologies, LLC., P.O. Box 246, Ambler, PA 19002, (215) 283-2600 (hereinafter called “Keystone Technologies”) warrants to the purchaser of its LED fixtures, retrofit kits, and light engines (hereinafter called “lighting components”) to be free of defects in material and workmanship and comply with their respective published specifications, from the date of installation, for time periods outlined below and subject to the terms and conditions herein. This warranty applies to fixtures that are operated within usage limit, 8,760 hours per year for a total of 5 years. If fixtures fail to operate for the warranty period, Keystone will, at its sole discretion, provide a free replacement fixture (but no labor allowance) or issue a credit for future purchase. This warranty is not applicable if the lighting component is not installed in accordance with the National Electric Code, the Standards for Safety of Underwriters Laboratories, Inc., Standards for the American National Standards Institute, or the Canadian Standards Association. This warranty is also not applicable if the lighting component is not installed according to Keystone Technologies instructions or recommendations or if the product has been exposed to abnormal operating conditions including excessive temperatures. For more information please go to www.keystonetech.com
