Description
- Adjustable wattage and CCT allow for in-field customization.
- Ballast bypass operation, runs off of 120-277V line voltage.
- Must remove existing ballasts.
- Classic ED28 lamp size and shape.
- Glass envelopment for clear and even light distribution.
- Long-life, high-efficacy LEDs with a 50,000 life hour rating.
- Excellent replacement for 50 watt to 100 watt HID lamps.
- 5-year, limited manufacturer warranty.

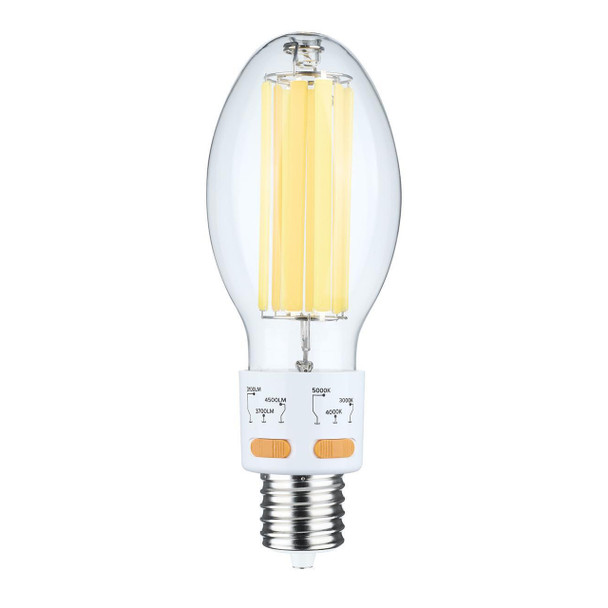

SATCO|NUVO’s LED HID Replacement Lamps are an energy efficient alternative to traditional HID lamps. Offered in a field selectable ED28 model or wattage selectable in ED28 and ED37 models. Designed for use in type B ballast bypass applications, these lamps make the transition to LED lamps easy. Enjoy long-lasting and low-maintenance lighting in warehouses, post top and area lights, gymnasiums and more.
Adjust the wattage of the light to optimize maximum brightness. Select between 17 watt, 20.5 watt, and 25 watt settings.
Change the look and feel of your light by switching the color temperature. Each lamp comes with a switch that selects between 3000K soft white, 4000K cool white, and 5000K daylight color temperatures.
These LED filament lights and designed to have the same look and feel of traditional HID lamps. This makes it easier to retrofit existing fixtures knowing the new LEDs will fit.
Glass envelope to produce clear and consistent lighting. 50,000 hour lifespan backed by a 5-year limited manufacturer warranty.
Listings & Certifications
ETL
RoHS
DLC
Additional Information
Manufacturer: |
SATCO |
Brand / Product Series: |
SATCO |
MPN: |
S13195 |
Model: |
25W/LED/HID/ED28/CCT/EX39/CL |
Wattage: |
17/20.5/25 Watt |
Metal Halide Equivalent: |
50 to 100 Watt |
Lamp Shape: |
ED28 |
Base Code: |
EX39 |
Base Type: |
Extended Mogul |
Lumens: |
3,100-4,500 |
Efficacy: |
180 lumens / Watt |
Color Temperature (CCT): |
3000/4000/5000 Kelvin |
Life Rating: |
50,000 Hours |
CRI: |
80+ |
Operation Type: |
Type B (Bypass) |
Voltage: |
120/208/240/277 |
Frequency: |
50/60 Hz |
Power Factor: |
>0.9 |
THD: |
N/A |
Surge Protection: |
2kV |
Finish: |
Clear |
IP Rating: |
N/A |
Location Rating: |
Wet |
Length: |
9.92 in. |
Width: |
3.58 in |
Height: |
3.58 in |
Weight: |
0.55 lbs |
UL: |
No |
ETL: |
Yes |
RoHS: |
Yes |
FCC: |
Yes |
CEC Status: |
Lawful for Sale |
DLC ID: |
S-YZF3TT |
Warranty: |
5-Year Manufacturer |
