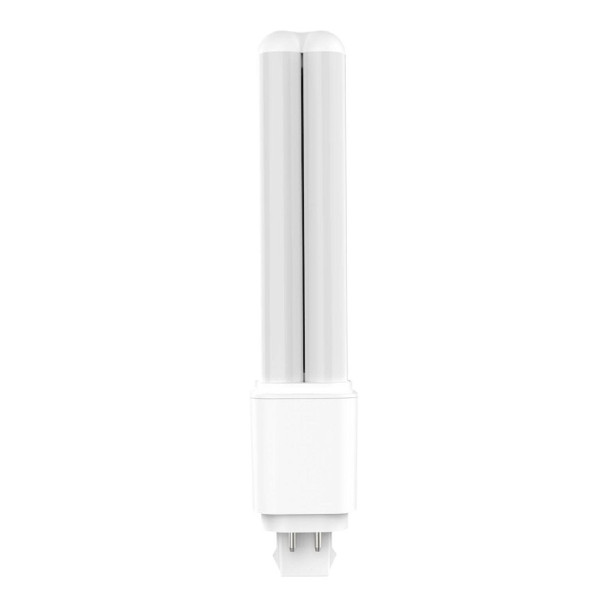

Description
Halco's LED plug in family offers a full line of products to meet the needs of any application. Halco's plug in line offers color selectable hybrid, high lumen output (vertical or horizontal), and omni-directional options that are available in a variety of color temperatures and lumen output ranges. These efficient, versatile, and long lasting LED plug in lamps are the perfect replacement option for fluorescent double or triple biax products.
Key Features
- Hybrid operation mode for maximum installation flexibility.
- Works with or without the existing fluorescent ballast.
- Re-wiring needed to operate without a ballast.
- Not compatible with electronic ballasts, magnetic only.
- Compatible with 4-Pin G24q sockets.
- Produces a 5000K daylight white color.
- 50,000-hour long life rating.
- Backed by a 5-year limited manufacturer warranty.
Specifications
| SKU | 28802 |
| Manufacturer | Halco Lighting Technologies |
| Brand | ProLED |
| Manufacturer Part No. | 82146 |
| Model | PL10O-850-HYBE-4P-LED-D |
| UPC | 807154821464 |
| Lamp Shape | PLC-O |
| Light Technology | LED |
| Wattage | 9.5 Watt |
| Equivalent | 18-26W CFL |
| Lumens | 1250 |
| Efficacy (LPW) | 132 |
| Life Hours | 50,000 Hours |
| Color Temperature (CCT) | 5000K |
| Color Rendering (CRI) | 80+ |
| Beam Angle | 360° |
| Dimmable | Yes |
| Dimming Type | Type A Only |
| Voltage | 120/208/240/277 V |
| Operation Type | UL Type AB |
| Frequency | 60 Hz |
| Power Factor | >0.90 |
| THD | N/A |
| Base | 4-Pin G24q |
| Burn Position | Omni-Directional |
| Lens | Polycarbonate |
| Finish | Frosted |
| Operation Temperature | -4°F to 113°F |
| Environment | Damp Locations |
| Fixture Rating | Open |
| Length | 6.87 in. |
| Width | 1.36 in. |
| Height | 1.36 in. |
| Weight | 0.26 lbs. |
| UL | Yes |
| ETL | No |
| Energy Star | No |
| DLC | No |
| DLC ID | N/A |
| FCC | Yes |
| NSF | Yes |
| RoHS | Yes |
| CEC Status | Lawful for Sale |
| Title 24 | No |
| Title 20 | No |
| Warranty | 5-Year |
Warranty Information
Halco Lighting Technologies, 2940 Pacific Drive, Norcross, GA 30071, warrants to the purchaser that Halco lamps will be free from defect in material and or workmanship from the date of installation for (5) years based on the product's L70 rated life.
View AllClose
Additional Information
Lamp Shape: |
PLC-O |
Operation Type: |
Type AB (Hybrid) |
Burn Position: |
Omni-Directional |
Wattage: |
9.5 W |
Lumens: |
1250 |
Lumens per Watt: |
132 |
Life Hours: |
50000 |
CRI: |
80+ |
Color Temperature (CCT): |
5000K |
Voltage: |
120/208/240/277 V |
Base Type: |
4-Pin G24q |
Equivalent: |
18-26 W |
