Description
- Field adjustable power switch to select between 16W, 24W, and 30W outputs.
- Comes with a field-adjustable CCT switch inside the fixture that allows you to choose between 2700K, 3000K, 3500K, 4000K, and 5000K color temperatures.
- Ideal for new construction, remodel, and retrofit applications.
- Haze reflector and white flange/trim.
- Long-life, high-efficacy LEDs with a 50,000 life hour rating.
- Pre-installed 8-3/8 inch five-wire flex conduit lead.
- 0-10VDC and 120V ELV/Triac dimming standard.
- 5-year, limited manufacturer warranty.

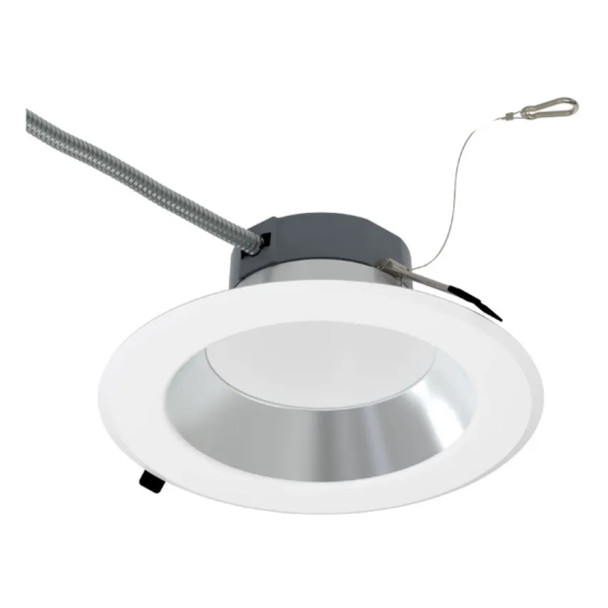

Halco's Retrofit Commercial Downlights are a quick, easy, and convenient way to reinvent commercial lighting spaces. Color temperatures and light output can be chosen before or after installation with the flip of a switch. There is no need to worry about what type of dimming is currently being used in the space as the integral fixture driver for the CDLSeries can dim using either 0-10V or ELV/Triac phase cut protocols. When emergency lighting is needed, the CDLEM family offers an aesthetically pleasing integral emergency battery backup solution. The robust spring clips and quick connect metal clad cables makes installation ofthe fixture and battery backup a breeze and the low profile combination test switch and charging indicator light eliminate large, unsightly ceiling and fixture mounted buttons. White and Haze colored reflectors, combined with all the other fixture options of the CDL family complete the look and make your commercial retrofit lighting projects a success.
Listings & Certifications
ETL
Energy Star
Title 24
Warranty Information
Additional Information
Manufacturer: |
Halco Lighting Technologies |
Brand / Product Series: |
ProLED |
MPN: |
89216 |
Model: |
CDL-8-LS-CS-HZWH-DDV |
Wattage: |
16/24/30 Watt |
Equivalent: |
200W Incandescent |
Lumens: |
1,800 to 3,500 |
Efficacy: |
121-134 lumens / Watt |
Color Temperature (CCT): |
2700/3000/3500/4000/5000 Kelvin |
Beam: |
Flood |
Life Rating: |
50,000 Hours |
CRI: |
90+ |
Size: |
8 inch |
Voltage: |
120/208/240/277 |
Frequency: |
60 Hz |
Power Factor: |
>0.90 |
Dimmable: |
Yes, 0-10V and 120V |
Connection: |
8.63-inch Flexible Conduit |
Shape: |
Round |
Adjustable: |
No |
Housing Material: |
Steel |
Finish: |
Haze |
Lens Material: |
Plastic |
Trim Color: |
White |
Trim Design: |
Smooth |
IP Rating: |
IP65 |
Location Rating: |
Wet |
Mounting: |
Spring Clips |
Length: |
9.44 in. |
Width: |
9.44 in. |
Height: |
4.44 in. |
UL: |
No |
ETL: |
Yes |
RoHS: |
Yes |
Energy Star: |
Yes |
Fire Rated: |
No |
FCC: |
Yes |
Air Tight: |
Yes |
NEC: |
N/A |
IC: |
Yes |
Title 20: |
No |
Title 24: |
Yes |
DLC: |
No |
DLC ID: |
N/A |
Warranty: |
5-Year Manufacturer |
