Description
- Emergency test button and battery charging indicator.
- Rugged, injection molded, flame retardant, high temperature thermoplastic.
- 1.5W Remote capable.
- Long life, high intensity, LEDs.
- Fully illuminated 6" legend with 3/4" stroke.
- Field-selectable, snap in and out chevrons.
- Suitable for ceiling, end and wall mount.
- Universal J-box mounting pattern on back plate.
- Canopy included.
- UL924 damp Location Listed.
- NFPA 101 and NFPA 70.
- CEC Title 20 compliant.
- 10°C to 40°C operating Temperature.

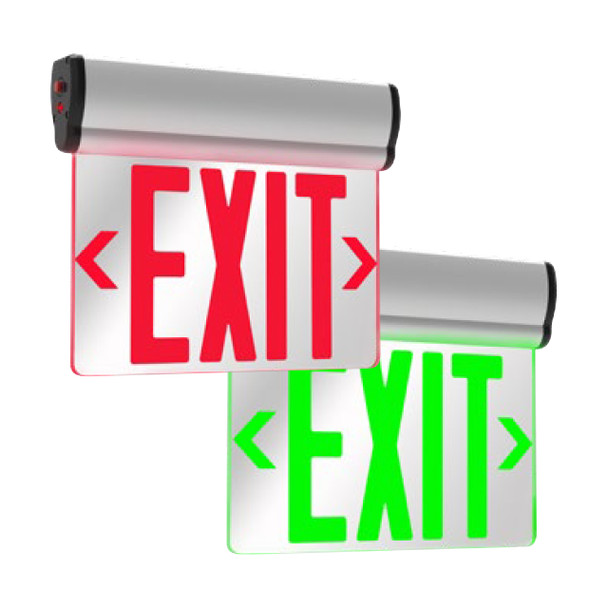

The Emergence Series Edgelit Exit Sign offers the most versatile code compliant solution for hallway, stairwell, and other Life Safety applications. The universal red/green legend, field-selectable single/double face, and universal ceiling/end/wall mounting includes universal chevron indicators as well as universal input voltage to provide the most field configurable edgelit exit sign on the market. The low profile design makes it ideal to mount on ceilings or walls in surface, end or top mount configurations, indicating the path of egress for a minimum of 90 minutes after a power loss.
Each exit sign comes with a red and green insert and adjustable backlight to give installers flexibility to use one product in multiple settings.
Includes an additional cover plate and exit cutout to switch between single and double faced options.
Universal mounting kit for recessed mounting or surface mounting on the top, side, or back.
Listings & Certifications
UL
Title 20
Additional Information
Manufacturer: |
Halco Lighting Technologies |
Brand / Product Series: |
Emergence |
MPN: |
97104 |
Model: |
EMG-EDG-AL-RG |
Voltage: |
120/277 |
Wattage: |
4 Watt |
Life Rating: |
100,000 Hours |
Letter Color: |
Red & Green |
Chevrons: |
Field Install |
Housing Color: |
White |
Housing Material: |
Aluminum |
Mounting: |
Recessed & Surface |
Battery Type: |
NiCad |
Battery Capacity: |
N/A |
Emergency Power: |
90 Min |
Recharge Time: |
24 Hour |
Remote Capable: |
No |
Location Rating: |
Damp |
Test Switch: |
Integrated |
Charge Indicator: |
Integrated |
Length: |
4.32 in. |
Width: |
12.06 in. |
Height: |
10.32 in. |
UL: |
Yes |
RoHS: |
No |
Title 20: |
Yes |
Warranty: |
5-Year Manufacturer |
