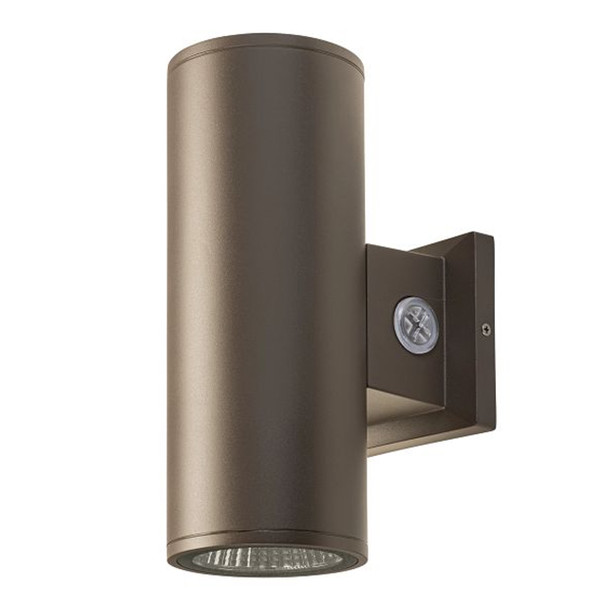

Keystone Sentinel LED Wall Mount Cylinder - 4 in. Bronze

Power, Color, and Beam Adjust - Indirect/Direct Light - 120-277 Volt - 0-10V Dimmable - Dusk to Dawn - KT-CYLED20PS-4A-WDI-OSG-8CSB-VDIM
(No reviews yet) Write a Review
SKU:31117
UPC:843654162584
MPN:KT-CYLED20PS-4A-WDI-OSG-8CSB-VDIM
Condition:New
Shipping:Free Shipping
    • Field adjustable power switch to select between 12W, 16W, and 20W outputs.
    • Field adjustable light direction switch: UP, DOWN, or FULL.
    • Power is halved in DOWN or UP only settings (6W, 8W, 10W).
    • Comes with a field-adjustable CCT switch inside the fixture that allows you to choose between 3000K, 4000K, and 5000K color temperatures.
    • Comes with field replacement reflectors to adjust beam.
    • Default 40° lens; 25° an 60° included.
    • Integrated photocontrol adds optional dusk-to-dawn functionality.
    • Long-life, high-efficacy LEDs with a 50,000 life hour rating.
    • 5-year, limited manufacturer warranty.
    • Keystone-KT-CYLED20PS-4A-WDI-OSG-8CSB-VDIM-image-01
    • Keystone-KT-CYLED20PS-4A-WDI-OSG-8CSB-VDIM-image-02
    • Keystone-KT-CYLED20PS-4A-WDI-OSG-8CSB-VDIM-image-03
    • Keystone-KT-CYLED20PS-4A-WDI-OSG-8CSB-VDIM-image-04
    $140.34
    Frequently bought together:

    Description

    Our Sentinel Wall Mount Cylinder light fixture provides architectural illumination for environments such as plazas, parks, and building exteriors. Changing beam angle and light output is simple, and with Keystone FormFit design technology, you also can change the exterior look in seconds. It’s an easy-to-use solution that can meet the needs of many jobs. For lighting versatility, Sentinel is your answer. With 3 reflectors, 3 directional options, 3 power outputs, and 3 CCT, it’s 81 SKUs in one product.

    Adjust the wattage of the fixture to optimize maximum brightness. Select between 12 watt, 16 watt, and 20 watt settings while in "FULL" setting. At "UP" and "DOWN" these rates are 1/2. Can be dimmed down for further control with 0-10V dimming.
    Change the look and feel of your fixture by switching the color temperature. Each fixture comes with a switch that selects between 3000K soft white, 4000K cool white, and 5000K daylight color temperatures.
    We’ve got your angle on outdoor lighting. With Sentinel, you can choose from 3 included reflectors with different beam angles — 25°, 40°, and 60°.
    The Sentinel features three directional options: full uplighting, full downlighting, and 50-50. Changing the direction is as easy as flicking a switch.
    Each fixture comes with an optional ON/OFF photocontrol that enables the installer to introduce fixture-level power control. Enabling the photocontrol causes the fixture to turn on during the night and off during the day. When disabled, the fixture is controlled by switched power

    Listings & Certifications

    UL

    logo of the Underwriters Laboratory

    IP65

    Ingress Protection 65 logo

    RoHS

    RoHSlogo
    View AllClose

    Warranty Information

    View AllClose

    Additional Information

    View AllClose

    Specifications

    Manufacturer:
    Keystone Technologies
    Brand / Product Series:
    Keystone
    MPN:
    KT-CYLED20PS-4A-WDI-OSG-8CSB-VDIM
    Model:
    KT-CYLED20PS-4A-WDI-OSG-8CSB-VDIM
    Wattage:
    6/8/10 Watt or 12/16/20 Watt
    Metal Halide Equivalent:
    70 Watt
    Lumens:
    580-1,025 or 1,160-2,050
    Efficacy:
    92-108 lumens / Watt
    Color Temperature (CCT):
    3000/4000/5000 Kelvin
    Life Rating:
    50,000 Hours
    CRI:
    80+
    Light Distribution:
    Indirect and/or Direct
    Voltage:
    120/208/240/277
    Frequency:
    N/A
    Power Factor:
    N/A
    THD:
    N/A
    Surge Protection:
    N/A
    Operating Temperature:
    -40°F to 113°F
    Dimmable:
    Yes, 0-10V
    Photocontrol:
    Integrated, On / Off.
    Housing Material:
    Aluminum
    Finish:
    Bronze
    Lens Material:
    N/A
    IP Rating:
    IP65
    Location Rating:
    Wet
    Cylinder Diameter (Nominal):
    4 in.
    Length:
    6.70 in.
    Width:
    4.17 in.
    Height:
    11.02 in.
    UL:
    Yes
    ETL:
    No
    RoHS:
    Yes
    Energy Star:
    No
    FCC:
    Yes
    DLC:
    No
    DLC ID:
    N/A
    Dark Sky:
    No
    Warranty:
    5-Year Manufacturer

    Warranty

    Keystone Technologies, LLC., P.O. Box 246, Ambler, PA 19002, (215) 283-2600 (hereinafter called “Keystone Technologies”) warrants to the purchaser of its LED fixtures, retrofit kits, and light engines (hereinafter called “lighting components”) to be free of defects in material and workmanship and comply with their respective published specifications, from the date of installation, for time periods outlined below and subject to the terms and conditions herein. This warranty applies to fixtures that are operated within usage limit, 8,760 hours per year for a total of 5 years. If fixtures fail to operate for the warranty period, Keystone will, at its sole discretion, provide a free replacement fixture (but no labor allowance) or issue a credit for future purchase. This warranty is not applicable if the lighting component is not installed in accordance with the National Electric Code, the Standards for Safety of Underwriters Laboratories, Inc., Standards for the American National Standards Institute, or the Canadian Standards Association. This warranty is also not applicable if the lighting component is not installed according to Keystone Technologies instructions or recommendations or if the product has been exposed to abnormal operating conditions including excessive temperatures. For more information please go to www.keystonetech.com
