Description
- Red or Green Switchable LED and Diffuser Color.
- Includes Single or Double Facing Configurations.
- Surface Mount - Back and Top.
- Integrated Backup Battery - NiMH 1200mAh.
- 90 Minutes of Emergency Power.
- Integrated Test Switch & Charge Indicator.
- Thermoplastic Housing - UL 94 5VA Flame Rating.
- UL Certified for Damp Locations.
- Universal J-Box Mounting Pattern.

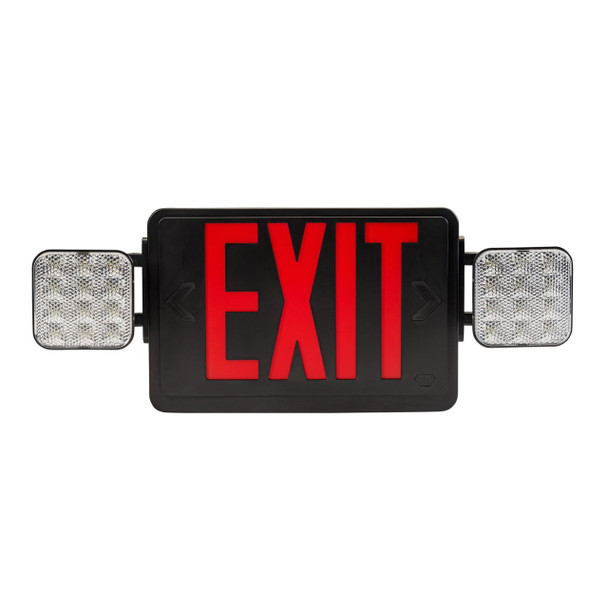

Our combo units offer all the versatility of our exit signs, including lettering colors and mounting options, with positionable dual heads, providing bright and bold egress for a wide variety of spaces. Our combo units feature positionable dual heads to direct the light where you need it most. Keystone exit and emergency combo lighting units feature thermoplastic housing with a UL 94 5VA flame rating, the highest flame-retardant rating available. They combo units are available in white and black housing. Our outdoor combo units are UL Wet Location and IP65 rated, so they can handle the elements. Surface J-box mounting for the combo unit can be done from the top or the back – your choice.
Each exit sign comes with a red and green insert and adjustable backlight to give installers flexibility to use one product in multiple settings.
Includes an additional cover plate and exit cutout to switch between single and double faced options.
Each exit sign comes with components for three mounting options: back surface mount and a canopy attachment for and top mount.
Listings & Certifications
UL
RoHS
Title 20
Warranty Information
Keystone Technologies, LLC., P.O. Box 246, Ambler, PA 19002, (215) 283-2600 (hereinafter called “Keystone Technologies”) warrants to the purchaser of its LED fixtures, retrofit kits, and light engines (hereinafter called “lighting components”) to be free of defects in material and workmanship and comply with their respective published specifications, from the date of installation, for time periods outlined below and subject to the terms and conditions herein. This warranty applies to fixtures that are operated within usage limit, 8,760 hours per year for a total of 5 years. If fixtures fail to operate for the warranty period, Keystone will, at its sole discretion, provide a free replacement fixture (but no labor allowance) or issue a credit for future purchase. This warranty is not applicable if the lighting component is not installed in accordance with the National Electric Code, the Standards for Safety of Underwriters Laboratories, Inc., Standards for the American National Standards Institute, or the Canadian Standards Association. This warranty is also not applicable if the lighting component is not installed according to Keystone Technologies instructions or recommendations or if the product has been exposed to abnormal operating conditions including excessive temperatures. For more information please go to www.keystonetech.com
View AllClose
Additional Information
Manufacturer: |
Keystone Technologies |
Brand / Product Series: |
SmartSafe |
MPN: |
KT-EC-TP1-BL3RGW-SD |
Model: |
KT-EC-TP1-BL3RGW-SD |
Voltage: |
120/277 |
Wattage: |
3.5 Watt |
Lumens: |
200 |
Color Temperature (CCT): |
6500 Kelvin |
Life Rating: |
N/A |
Letter Color: |
Red & Green |
Chevrons: |
Field Install - Snap Out |
Housing Color: |
Black |
Housing Material: |
UL 94 5VA Thermoplastic |
Mounting: |
Surface: Top, Back |
Battery Type: |
NiMH |
Battery Capacity: |
1200mAh |
Emergency Power: |
90 Min |
Recharge Time: |
24 Hour |
Remote Capable: |
No |
Location Rating: |
Damp |
Test Switch: |
Integrated |
Charge Indicator: |
Integrated |
Length: |
4.37 in. |
Width: |
16.10 in. |
Height: |
7.95 in. |
UL: |
Yes |
RoHS: |
Yes |
Title 20: |
Yes |
Warranty: |
5-Year Manufacturer |
