Description
- This product acts as a regular LED tube light but contains a emergency battery inside of it.
- During a power outage, the bulb will last over 90 minutes on battery.
- Fully code compliant; including UL924, UL1598C, and CEC Title 20.
- Field-adjustable dip switch to change between 3000K, 3500K, 4000K, 5000K, and 6500K color temperatures.
- To wire this lamp, see drawing. A constant hot is required.
- No ballast is required to operate these lamps.

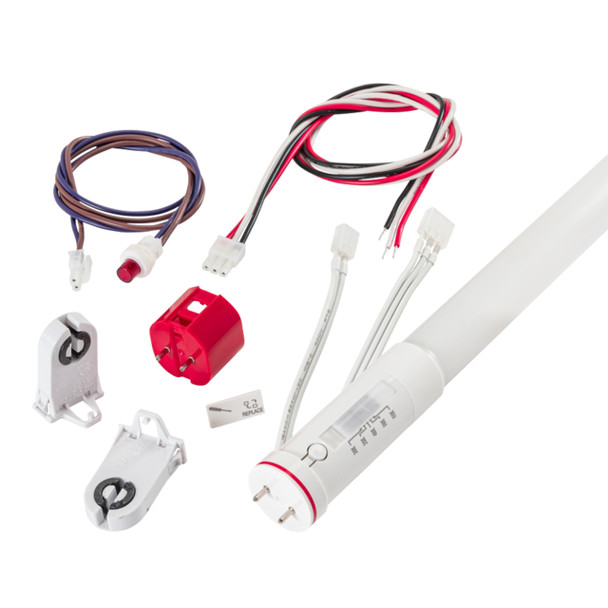

- Product comes with a pair of sockets to indicate which side is constant hot.
The DirectDrive Emergency Tube is a UL Type B T8 tube featuring an innovative design that seamlessly incorporates a rechargeable battery into a tube format, ensuring a permanent installation that cannot be easily tampered with or removed accidentally. DirectDrive is Keystone’s ballast bypass technology. By bypassing the ballast, compatibility isn’t a concern – a Keystone driver is integrated into the lamp and the lamp is directly wired to the power source. Together, these features help save money and reduce energy use.
Acts as a regular LED T8 light but with a backup battery. The backup battery offers 90-minute minimum illumination duration, and Keystone driver quality ensures consistent performance, providing peace of mind to building occupants and owners alike.
The EMRG Tube is equipped with Keystone Color Select, allowing the user to choose from among 5 CCT – 3000K, 3500K, 4000K, 5000K, and 6500K – so you can customize the light to your space.
Listings & Certifications
UL
DLC
Additional Information
Manufacturer: |
Keystone Technologies |
Brand / Product Series: |
DirectDrive Emergency Tube |
MPN: |
KT-LED14.5T8EM-48GC-8CSJ-D |
Model: |
KT-LED14.5T8EM-48GC-8CSJ-D |
Nominal Length: |
4 ft. |
Light Technology: |
Light Technology |
Lamp Shape: |
T8 |
Wattage: |
14.5 Watt |
Equivalent Wattage: |
32 Watt |
Replaces: |
F32T8 |
Base Code: |
G13 |
Base Type: |
Medium Bi-Pin |
Voltage: |
120/208/240/277 |
Operation Type: |
Type B (Bypass) |
Lumens: |
2000 |
Emergency Lumens: |
500 |
Efficacy: |
138 lumens / Watt |
Color Temperature (CCT): |
3000/3500/4000/5000/6500 Kelvin |
Life Rating: |
50,000 Hours |
CRI: |
80+ |
Dimmable: |
No |
Wiring: |
Single Ended |
Compatible Sockets: |
Non-Shunted |
Battery Type: |
Ternary Lithium |
Emergency Power: |
90 min. |
Recharge Time: |
24 Hour |
Test Switch: |
External |
Charge Indicator: |
External |
UL: |
Yes |
ETL: |
No |
NSF: |
No |
RoHS: |
Yes |
FCC: |
No |
Energy Star: |
No |
DLC: |
No |
DLC ID: |
N/A |
Warranty: |
5-Year Manufacturer |
