Description
- Passive infrared sensors with exclusive Lutron XCT Technology for fine motion detection.
- 180° sensor field-of-view.
- Up to 30 ft x 30 ft (9 m x 9 m) major motion coverage and 20 ft x 20 ft (6 m x 6 m) minor motion coverage.
- Occupancy version can be set to Auto-ON/Auto-OFF or Manual-ON/Auto-OFF.
- Adjustable timeout (1, 5, 15, or 30 minutes) and high/low sensitivity adjustment.
- Load types: incandescent, halogen, ELV, MLV, CFL, LED, magnetic fluorescent, electronic fluorescent, and fan.

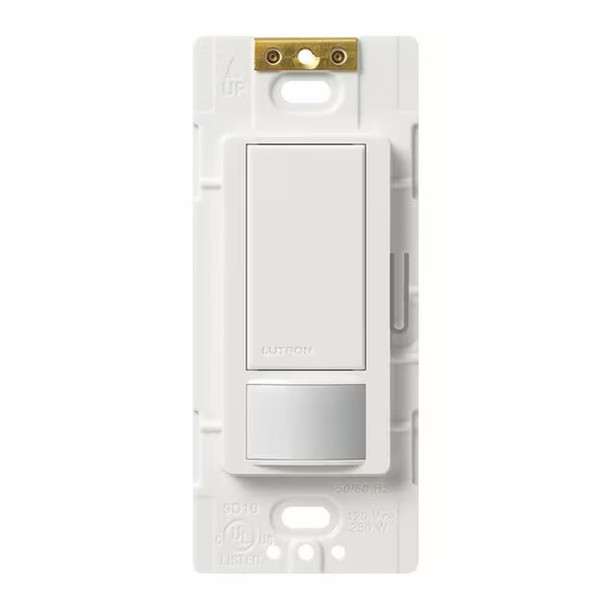

The Lutron Maestro occupancy sensor switch combines a Maestro switch with a passive infrared occupancy or vacancy sensor. The sensor detects the heat from occupants moving within an area to determine whether the space is occupied. Based on the feedback from the sensor, the occupancy sensor switch will adjust the load accordingly.
Listings & Certifications
UL
Additional Information
Manufacturer: |
Lutron |
Brand / Product Series: |
Maestro |
MPN: |
MS-OPS6M2-DV-WH |
Model: |
MS-OPS6M2-DV-WH |
Sensor Type: |
Occupancy |
Sensor Technology: |
PIR |
Switch Type: |
Button |
Mounting: |
Wall |
Voltage: |
120-277 VAC |
Frequency: |
60/50 Hz |
Load Rating: |
6 A |
Control Output: |
Hardwired |
Dimming: |
Not Compatible |
Has Battery: |
No |
Settings Adjust: |
Button and LED |
Time Delays: |
1, 5, 15, or 30 min |
Sensitivity: |
High/Low |
Walk-Through: |
N/A |
Sensor Mode: |
Occ/Vac |
Sensor Coverage: |
900 sq ft |
Detection Zone: |
180° |
Location Rating: |
Indoor |
Color: |
White |
Length: |
N/A |
Width: |
N/A |
Height: |
N/A. |
Weight: |
N/A |
UL: |
Yes |
RoHS: |
N/A |
FCC: |
N/A |
Warranty: |
5-Year |
