Description
- Ease of use – pull the lever up, insert a conductor and push the lever back down.
- Available as 2-, 3- and 5-wire connectors.
- Easily terminate conductors from 24 to 12 AWG.
- Connect solid, stranded and fine-stranded conductors.
- Time savings for installers and device manufacturers.
- Quickly install devices with higher levels of power consumption.
- Safely install long cable runs with larger conductor cross sections.
- Mounting carrier for installation conforms to standards.

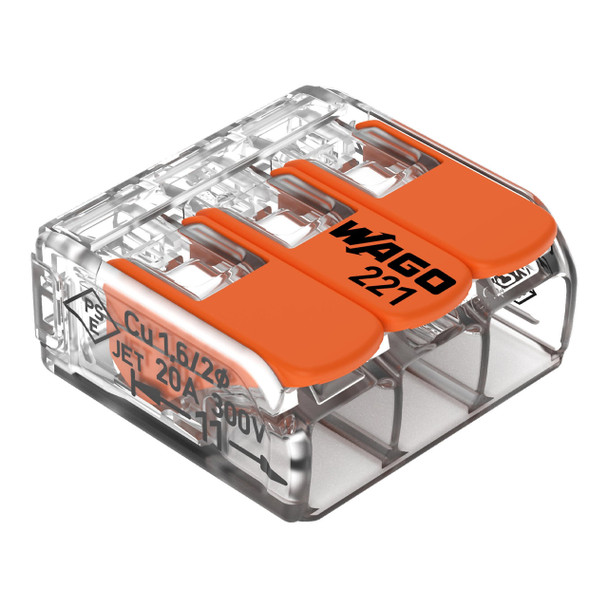

Engineered for ultimate ease, reliability, and versatility, the WAGO 221 Series Lever‑Nuts® deliver flawless wire splicing every time. Just lift the bright orange lever, insert solid, stranded, or fine‑stranded copper wires, then snap the lever shut for a secure, tool‑free connection. Its compact, transparent housing not only saves space in junction boxes but also lets you visually verify proper strip length and wire insertion. With dual test ports on front and back, seamless compatibility across wire types, and a reusable design, the 221 Series is perfect for residential, commercial, lighting, control systems, and mobile applications. Trusted by professionals for its intuitive, adaptable design, it sets the gold standard in modern electrical installations.
Listings & Certifications
UL
RoHS
Additional Information
Manufacturer: |
WAGO |
Brand / Product Series: |
221 LEVER-NUTS® |
MPN: |
221-413 |
Quantity: |
Box of 50 |
Connector Type: |
Splice |
Actuation Type: |
Lever |
# of Ports: |
3 |
Voltage: |
600 V |
Current: |
20 A |
Conductor Material: |
Copper |
Housing Material: |
Polycarbonate |
Solid Conductor: |
24 to 12 AWG |
Stranded Conductor: |
24 to 12 AWG |
Strip Length: |
0.43 in. |
UL: |
Yes |
IEC: |
Yes |
RoHS: |
Yes |
Length: |
0.732 in. |
Width: |
0.74 in. |
Height: |
0.331 in. |
