Description

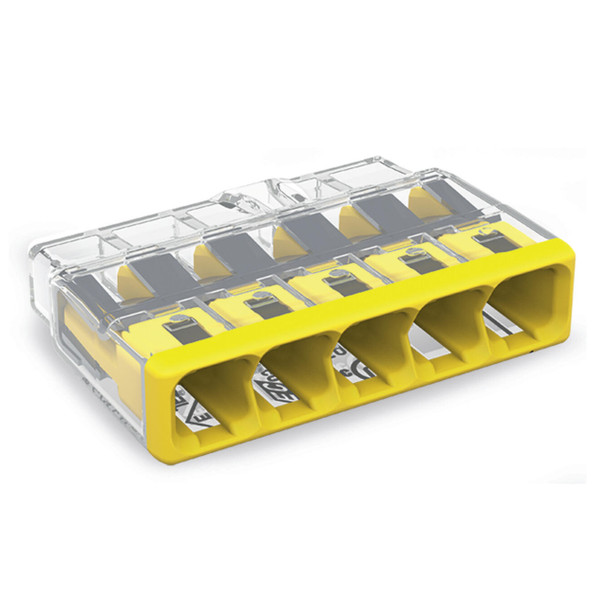

Enjoy seamless electrical installations with push wire® splicing connector (item number 2773-405). The 2773 Series PUSH WIRE® connectors for junction boxes provide safe, quick, and easy installations in any building, no matter the position or location. This splicing connector has a rated voltage of 450 V and can handle currents up to 32 A, making it suitable for high-load applications. Ensure that the strip lengths are 13 mm when connecting conductors to push wire® splicing connector. This product features conductor terminals and utilizes PUSH WIRE®. Our PUSH WIRE® connection offers a quick and easy method for connecting solid conductors. The item's dimensions are 26 x 6.3 x 18.6 mm (width x height x depth). Push wire® splicing connector is suitable for conductor cross sections ranging from 0.75 mm² to 4 mm². The contact surface is coated with tin.
Listings & Certifications
RoHS
Additional Information
Manufacturer: |
WAGO |
Brand / Product Series: |
COMPACT PUSHWIRE® |
MPN: |
2773-405 |
Quantity: |
Box of 60 |
Connector Type: |
Splice |
Actuation Type: |
Push-in |
# of Ports: |
5 |
Voltage: |
450 V |
Current: |
32 A |
Conductor Material: |
Copper |
Housing Material: |
Polycarbonate |
Solid Conductor: |
20 to 12 AWG |
Stranded Conductor: |
18 to 12 AWG |
Strip Length: |
0.51 in. |
UL: |
Yes |
IEC: |
Yes |
RoHS: |
Yes |
Length: |
0.732 in. |
Width: |
1.024 in. |
Height: |
0.248 in. |
