Description

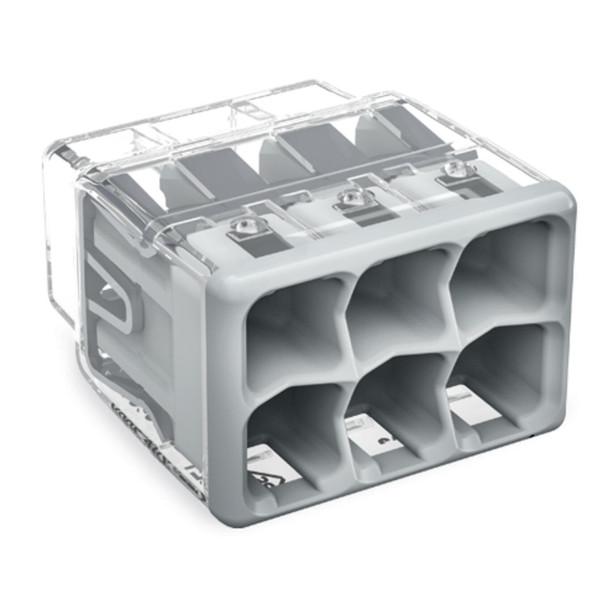

Our push wire® splicing connector (item number 2773-406) is designed for seamless electrical installations. The 2773 Series PUSH WIRE® connectors for junction boxes provide safe, quick, and easy installations in any building, regardless of the complexity. Our splicing connector is rated for 450 V and is designed for use with a rated current of up to 32 A. It can therefore be used in high-load applications. Conductors can only be connected to push wire® splicing connector if their strip length is 13 mm. This product features conductor terminals and utilizes PUSH WIRE®. Our PUSH WIRE® connection uses the stiffness of the conductor to overcome the clamping spring's contact force, allowing faster and easier conductor clamping. The dimensions are 16.4 x 11.3 x 18.6 mm (width x height x depth). Push wire® splicing connector is suitable for conductor cross sections ranging from 0.75 mm² to 4 mm². Tin is used for coating the contact surfaces.
Listings & Certifications
RoHS
Additional Information
Manufacturer: |
WAGO |
Brand / Product Series: |
COMPACT PUSHWIRE® |
MPN: |
2773-406 |
Quantity: |
Box of 50 |
Connector Type: |
Splice |
Actuation Type: |
Push-in |
# of Ports: |
6 |
Voltage: |
450 V |
Current: |
32 A |
Conductor Material: |
Copper |
Housing Material: |
Polycarbonate |
Solid Conductor: |
20 to 12 AWG |
Stranded Conductor: |
18 to 12 AWG |
Strip Length: |
0.51 in. |
UL: |
Yes |
IEC: |
Yes |
RoHS: |
Yes |
Length: |
0.732 in. |
Width: |
0.646 in. |
Height: |
0.445 in. |
