Description
- Field adjustable power switch to select between 60W, 80W, and 100W outputs.
- Comes with a field-adjustable CCT switch inside the fixture that allows you to choose between 4000K and 5000K color temperatures.
- Fixture comes with a 1'2" NPT steel J-hook for suspension mounting.
- Built in 6kV surge protection.
- Long-life, high-efficacy LEDs with a 100,000 life hour rating.
- Excellent replacement for 250 watt HID fixtures.
- 5-year, limited manufacturer warranty.

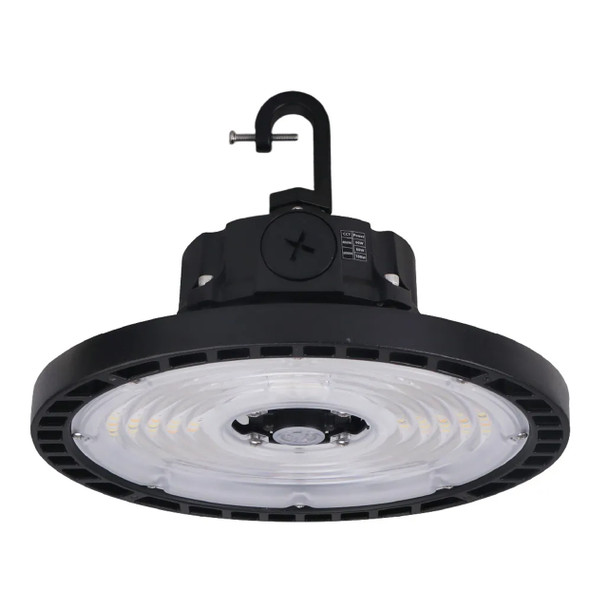

The Essential Round High Bay delivers an ideal balance of performance and value for applications such as warehouses, gymnasiums, big box retail, and showrooms. Engineered with high lumen efficacy, field-selectable lumen output and CCT, it adapts easily to diverse project needs while ensuring long service life. Its powder-coated die-cast aluminum housing and durable polycarbonate lens, combined with an IP65 wet location rating, provide reliable operation in demanding environments. Installation is simplified with a 6' cord, ½" NPT steel hook, and surface-mount U-bracket, offering maximum versatility and ease of use
Adjust the wattage of the fixture to optimize maximum brightness. Select between 60 watt, 80 watt, and 100 watt settings. Can be dimmed down for further control with 0-10V dimming.
Change the look and feel of your fixture by switching the color temperature. Each fixture comes with a switch that selects between 4000K cool white and 5000K daylight color temperatures.
Each fixture comes with a ½" NPT steel hook and locking screw for easy hanging. Comes standard with a 6-inch shielded power cord and a separate 0-10V diming wiring cord. Safety-cable included for safety!
Die-cast aluminum housing with a black powder coat finish. Polycarbonate lens for diffused and even light spread. Rated lifespan of 100,000 hours backed by a 5-year limited manufacturer warranty.
Listings & Certifications
UL
RoHS
IP65
DLC
Warranty Information
Halco Lighting Technologies, 2940 Pacific Drive, Norcross, GA 30071, warrants to the purchaser that Halco fixtures will be free from defect in material and or workmanship from the date of installation for the (5) years.
View AllClose
Additional Information
Manufacturer: |
Halco Lighting Technologies |
Brand / Product Series: |
ProLED |
MPN: |
37310 |
Model: |
ERHB-1-LS-CS-U |
Wattage: |
60/80/100 Watt |
Equivalent: |
250 Watt Metal Halide |
Lumens: |
9.900-15.000 |
Efficacy: |
148-161 lumens / Watt |
Color Temperature (CCT): |
4000/5000 Kelvin |
Life Rating: |
100,000 Hours |
CRI: |
80+ |
Voltage: |
120/208/240/277 |
Frequency: |
50/60 Hz |
Power Factor: |
>0.90 |
THD: |
N/A |
Surge Protection: |
6kV |
Dimmable: |
Yes, 0-10V |
Options: |
Standard |
Mounting: |
Hook |
Housing Material: |
Aluminum |
Finish: |
Black |
Lens Material: |
Polycarbonate |
IP Rating: |
IP65 |
Location Rating: |
Wet |
Length: |
9.45 in. |
Width: |
9.45 in. |
Height: |
6.81 in. |
Weight: |
5.73 lbs |
UL: |
Yes |
ETL: |
No |
RoHS: |
Yes |
Energy Star: |
No |
FCC: |
Yes |
DLC: |
Yes |
DLC ID: |
S-24F7GZ |
Warranty: |
5-Year Manufacturer |
