Description

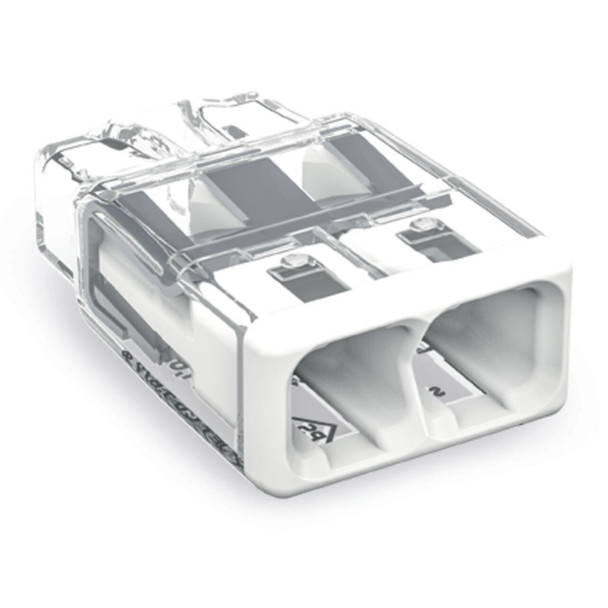

Easy electrical installations are guaranteed with push wire® splicing connector (item number 2773-402). The 2773 Series PUSH WIRE® connectors for junction boxes provide safe, quick, and easy installations in any building, no matter the position or location. Ensure that the strip lengths are 13 mm when connecting conductors to push wire® splicing connector. Our splicing connector is rated for 450 V and is designed to handle a rated current of up to 32 A. It is therefore suitable for high-load applications. Featuring conductor terminals along with PUSH WIRE®, this connector delivers reliable performance. Our PUSH WIRE® connection uses the stiffness of the conductor to overcome the clamping spring's contact force, allowing you to clamp the conductor in place more quickly and easily. The dimensions are (11.6 x 6.3 x 18.6) mm (width x height x depth). Push wire® splicing connector is suitable for conductor cross sections ranging from 0.75 mm² to 4 mm².
Listings & Certifications
RoHS
Additional Information
Manufacturer: |
WAGO |
Brand / Product Series: |
COMPACT PUSHWIRE® |
MPN: |
2773-402 |
Quantity: |
Box of 120 |
Connector Type: |
Splice |
Actuation Type: |
Push-in |
# of Ports: |
2 |
Voltage: |
450 V |
Current: |
32 A |
Conductor Material: |
Copper |
Housing Material: |
Polycarbonate |
Solid Conductor: |
20 to 12 AWG |
Stranded Conductor: |
18 to 12 AWG |
Strip Length: |
0.51 in. |
UL: |
Yes |
IEC: |
Yes |
RoHS: |
Yes |
Length: |
0.732 in. |
Width: |
0.457 in. |
Height: |
0.248 in. |
