Description
- Input: 5 Watt, 60 mA, 120-277 VAC, 50/60 Hz.
- Operates: (1-2) tubular or compact fluorescent lamps.
- Battery: Hi-temp, maintenance-free, Nickel Cadmium, 24-hour recharge time.
- Emergency Mode: Provides 90 minutes of emergency lighting.
- Emergency Illumination: Provides up to 1600 lumens of initial emergency output.
- 2-in-1 Switch: Dual test switch and indicator light included.

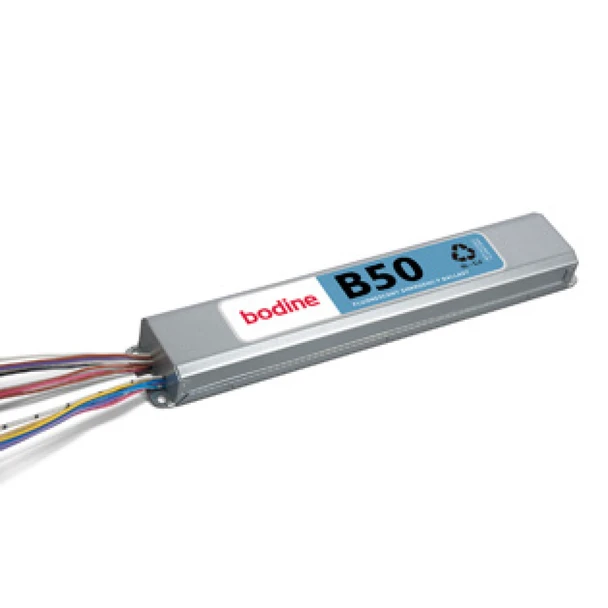

The B50 emergency ballast works in conjunction with an AC ballast to convert new or existing fluorescent fixtures into emergency lighting. The emergency ballast handles a wide range of input voltages and frequencies and consists of a high- temperature nickel-cadmium battery, charger and electronic circuitry in one compact galvanized metal case. The B50 can be used with one or two T8, T9, T10, T12 fluorescent lamps.
Listings & Certifications
UL
Battery Backup
Additional Information
Manufacturer: |
Signify |
Brand / Product Series: |
Bodine |
MPN: |
B50 |
Lighting Technology: |
Fluorescent |
Voltage: |
120-277 |
Frequency: |
50/60 Hz |
AC Input Current: |
60 mA |
AC Input Power: |
5.0 W |
# Lamps Operated: |
1-2 |
Operates: |
T5, T8, T12, CFL |
Emergency Power: |
90 min. |
Max. Lumens: |
1600 |
Battery Type: |
Nickel-Cadmium |
Battery Capacity: |
N/A |
Battery Life: |
7-10 Year |
Recharge Time: |
24 Hours |
Location Rating: |
Damp |
Test Switch: |
Included |
Charge Indicator: |
Included |
Case Type: |
Low Profile |
Connection: |
Flying Leads |
Length: |
12.8 in. |
Width: |
2.2 in. |
Height: |
1.18 in. |
UL: |
Yes |
RoHS: |
No |
CEC: |
No |
Warranty: |
5-Year Manufacturer |
