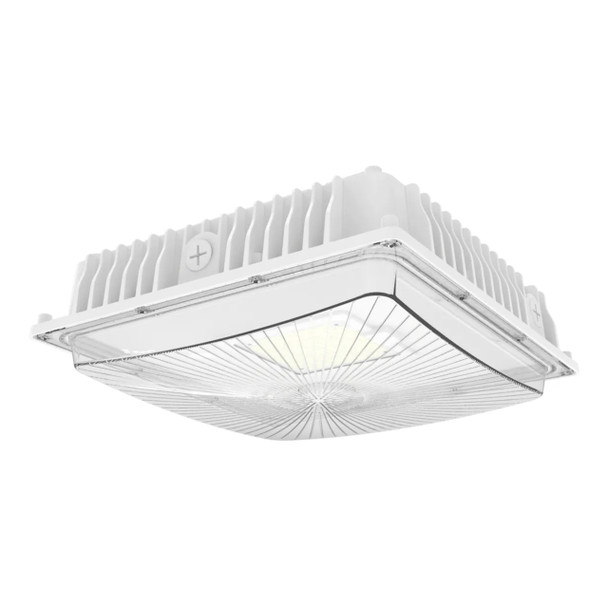

Description
The ProLED Select Slim Canopy is a durable and high performing luminaire that is a perfect solution for covered outdoor spaces. This slim canopy is designed with contractor friendly features such as the removable mounting plate that ensures a simple and secure installation. Equipped with ProLED Select CCT technology, the slim canopy allows users to quickly select between 3000K, 4000K and 5000K color temperatures in the field. With ease of installation, application versatility and ProLED Select technology, the Slim canopy is the ideal choice for retrofit and new build canopy applications.
Key Features
- Color temperature selectable: 3000K, 4000K, or 5000K
- Mounts directly over a 4-inch recessed outlet box
- 1/2" threaded plugs for conduit access and photocell provision
- 100,000 hour LED lifespan
- UL Listed for wet locations
- Backed by a 5-year warranty
Specifications
SKU | 28851 |
Manufacturer | Halco Lighting Technologies |
Brand | ProLED |
Manufacturer Part No. | 39905 |
Model | CSP-40-CS-U-WH |
UPC | 807154399055 |
Fixture Type | Canopy Light |
Light Technology | LED |
Wattage | 40 Watt |
Equivalent | 175W Metal Halide |
Life Hours | 100,000 Hours |
Color Rendering (CRI) | 70 |
Lumens | 5400 |
Efficacy (LPW) | 135 |
Color Temperature (CCT) | 3000K, 4000K or 5000K |
Voltage | 120/208/240/277 V |
Frequency | 50/60 Hz |
Power Factor | 0.9 |
THD | N/A |
Surge Protection | 4kV |
Dimmable | Yes |
Dimming Type | 0-10 V |
Housing | Aluminum |
Mounting | Ceiling or Pendant |
Lens | Polycarbonate |
Finish | White |
Operation Temperature | -40°F to 131°F |
Length | 3.26 in. |
Width | 9.53 in. |
Height | 9.53 in. |
Weight | 6 lb |
DLC | Yes |
DLC ID | S-91P8QH |
Energy Star | N/A |
Environment | Wet Locations |
UL | Yes |
ETL | No |
IP Rating | IP65 |
RoHS | Yes |
Warranty | 5-Year |
Warranty Information
Halco Lighting Technologies, 2940 Pacific Drive, Norcross, GA 30071, warrants to the purchaser that Halco fixtures will be free from defect in material and or workmanship from the date of installation for the (5) years.
View AllClose
Additional Information
Wattage: |
40 W |
Lumens: |
5400 |
Lumens per Watt: |
135 |
Voltage: |
120/208/240/277 V |
Color Temperature (CCT): |
Adjustable |
CRI: |
70+ |
Life Hours: |
100,000 |
Dimmable: |
Yes, 0-10V |
Power Factor: |
>0.9 |
Finish: |
White |
Equivalent: |
175 W |
Options: |
Standard |
