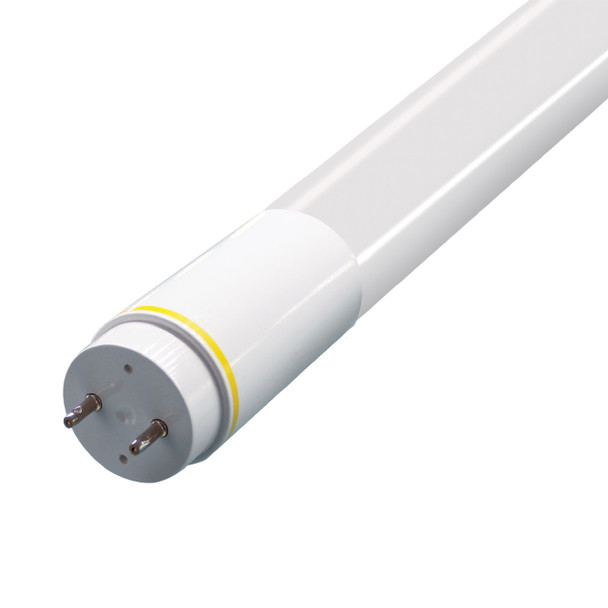

2 ft. - 7 Watt - LED T8 Tube - 950 Lumens | 4000K - UL Type B - Single or Double Ended - ProLED 84872 T824FR7/840/BYP4/DSE/LED

(No reviews yet) Write a Review
SKU:
10249
UPC:
807154848720
MPN:
84872
Condition:
New
Shipping:
Free Shipping
$9.18
Frequently bought together:

Description

  • Retrofit for existing fluorescent lamps.
  • Not compatible with ballasts, requires line voltage.
  • Can be powered with single or double ended wiring, works with shunted and non-shunted sockets.
  • Produces a 4000K cool white color.
  • 50,000-hour long life rating.
  • Backed by a 5-year limited manufacturer warranty.

Type B - Ballast Bypass: Type B LED lamps offer a cost-effective solution for your lighting needs. These lamps require bypassing or removing the ballast and rewiring them directly to line voltage. By eliminating the ballast, you not only enjoy improved energy efficiency but also reduce future maintenance costs. Upgrade your lighting system with Type B LED lamps and reap the benefits of long-term savings.

Icon of ballast bypass operation type

Single or Double-Ended: This lamp offers the flexibility to be powered in single or double ended wiring configuration. Meaning the bulbs can operate on shunted and non-shunted lampholders. Bulbs are typically marked with line (L) and neutral (N) labels near the pins to indicate how to wire the sockets.

Lampholder types for linear tube lights.Diagram of single-ended wiringDiagram of double-ended wiring

Specifications

SKU10249
ManufacturerHalco Lighting Technologies
BrandProLED
Manufacturer Part Number84872
Model / Product CodeT824FR7/840/BYP4/DSE/LED
UPC807154848720
Light TechnologyLED
Lamp ShapeT8
Wattage7 W
Equivalent Wattage17 W
ReplacesF17T8
Base CodeG13
Base TypeMedium Bi-Pin
Voltage120/208/240/277 V
Operating TemperatureN/A
OperationUL Type B
Color Temperature4000K
CRI80+
Lumens950
Lumens per Watt135
Beam Angle160°
Life Hours50000
Nominal Length2 ft.
Length24 in.
DiameterN/A
Fixture RatingEnclosed
Location RatingDamp
Power Factor>0.9
THDN/A
WiringSingle or Double Ended
Compatible SocketsShunted or Non-Shunted
MaterialGlass
LensFrosted
DimmableNo
Dimming TypeN/A
ULYes
ETLYes
NSFNo
RoHSYes
FCCYes
Energy StarNo
DLCYes
DLC IDPLSUALV4T6KE
Warranty5-Year
View AllClose

Warranty Information

Halco Lighting Technologies, 2940 Pacific Drive, Norcross, GA 30071, warrants to the purchaser that Halco lamps will be free from defect in material and or workmanship from the date of installation for (5) years based on the product's L70 rated life.
View AllClose

Additional Information

Lamp Shape:
T8
Operation Type:
Type B (Bypass)
Wiring Method:
Single or Double Ended
Wattage:
7 W
Length:
24 in.
Lumens:
950
Lumens per Watt:
135
Life Hours:
50000
CRI:
80+
Color Temperature (CCT):
4000K
Voltage:
120/208/240/277 V
Base Type:
Medium Bi-Pin
Dimmable:
No
Equivalent:
17 W
View AllClose
