Description

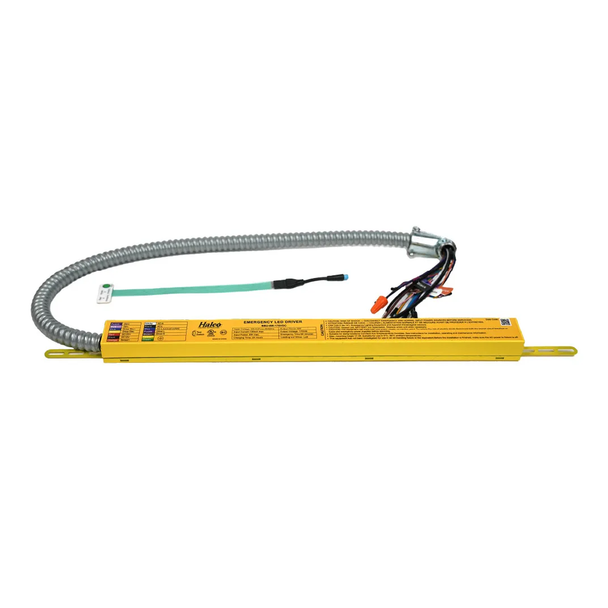

- Kit made for ProLED LED flat panel and strip fixtures.
- 25.6 in. flexible conduit connection.
- Includes a flat ribbon test switch.
- Lithium ion batter with 90 minute run time and 24 hour recharge.
- UL 924 Listed, CEC compliant, NFPA 101 and NFPA 70, and FCC and RoHS complaint.
The Flat Panel Series is a family of highly efficient, versatile, configurable recessed fixtures, designed for recessed applications. The DLC Premium listed panels offer lumen output and color temperature selectability, making their versatility and simple aesthetic design perfect for educational, commercial and retail and applications.
Listings & Certifications
UL
RoHS
Additional Information
Manufacturer: |
Halco Lighting Technologies |
Brand / Product Series: |
ProLED |
MPN: |
96105 |
Model: |
BBU-8W-170VDC |
Battery Type: |
Lithium Ion |
Battery Duration: |
90 min. |
Input Voltage: |
120/208/240/277 VAC |
Input Frequency: |
50/60 Hz |
Input Current: |
100mA Max. |
Output Power: |
8 Watt |
Output Voltage: |
170 VDC |
Output Current: |
N/A |
Power Factor: |
N/A |
Dimmable: |
Yes, 0-10V |
Connection: |
Hardwired |
Includes: |
EM LED Driver and Test Switch |
IP Rating: |
N/A |
Location Rating: |
Damp |
Life Rating: |
N/A |
Length: |
15.9 in. |
Width: |
1.3 in. |
Height: |
1.1 in. |
UL: |
Yes |
FCC: |
Yes |
RoHS: |
Yes |
Warranty: |
5-Year Manufacturer |
