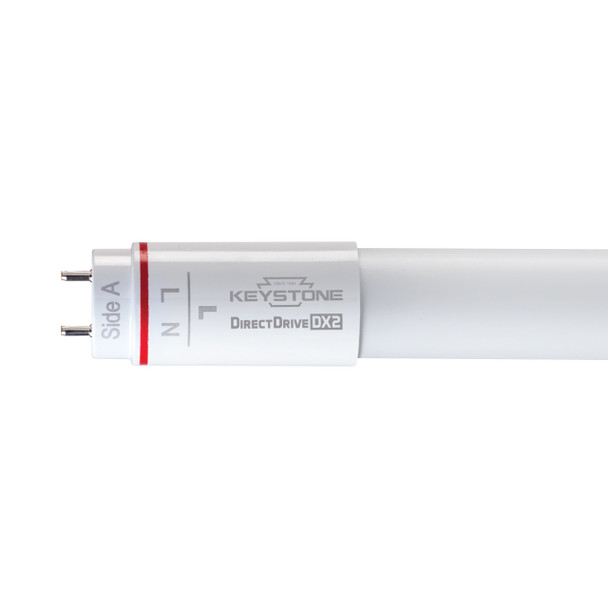

4 ft. - 25 Watt - LED T8 Tube - 3000 Lumens | 5000K - UL Type B - Single or Double Ended - Keystone KT-LED25T8-48G-850-DX2

(No reviews yet) Write a Review
SKU:
10144
UPC:
843654123233
MPN:
KT-LED25T8-48G-850-DX2
Condition:
New
Shipping:
Calculated at Checkout
$9.45
Frequently bought together:

Description

  • Retrofit for existing fluorescent lamps.
  • Not compatible with ballasts, requires line voltage.
  • Can be powered with single or double ended wiring, works with shunted and non-shunted sockets.
  • Produces a 5000K daylight white color.
  • 50,000-hour long life rating.
  • Backed by a 5-year limited manufacturer warranty.

Type B - Ballast Bypass: Type B LED lamps offer a cost-effective solution for your lighting needs. These lamps require bypassing or removing the ballast and rewiring them directly to line voltage. By eliminating the ballast, you not only enjoy improved energy efficiency but also reduce future maintenance costs. Upgrade your lighting system with Type B LED lamps and reap the benefits of long-term savings.

Icon of ballast bypass operation type


Single or Double-Ended: This lamp offers the flexibility to be powered in single or double ended wiring configuration. Meaning the bulbs can operate on shunted and non-shunted lampholders. Bulbs are typically marked with line (L) and neutral (N) labels near the pins to indicate how to wire the sockets.

Lampholder types for linear tube lights.Diagram of single-ended wiringDiagram of double-ended wiring


Specifications

SKU 10144
Manufacturer Keystone Technologies
Brand Keystone
Manufacturer Part Number KT-LED25T8-48G-850-DX2
Model / Product Code KT-LED25T8-48G-850-DX2
UPC 843654123233
Light Technology LED
Lamp Shape T8
Wattage 25 W
Equivalent Wattage 32 W
Replaces F32T8
Base Code G13
Base Type Medium Bi-Pin
Voltage 120/208/240/277 V
Operating Temperature -4°F to 113°F (-20°C to 45°C)
Operation UL Type B
Color Temperature 5000K
CRI 80+
Lumens 3000
Lumens per Watt 120
Beam Angle 240°
Life Hours 50000
Nominal Length 4 ft.
Length 47.15 in.
Diameter 1.10 in.
Fixture Rating Enclosed
Location Rating Damp
Power Factor >0.9
THD N/A
Wiring Single or Double Ended
Compatible Sockets Shunted or Non-Shunted
Material Coated Glass
Lens Frosted
Dimmable No
Dimming Type N/A
UL Yes
ETL Yes
NSF Yes
RoHS Yes
FCC Yes
Energy Star No
DLC Yes
DLC ID PL1X888X4SI1
Warranty 5-Year
View AllClose

Warranty Information

Keystone Technologies, LLC., P.O. Box 246, Ambler, PA 19002, (215) 283-2600 (hereinafter called "Keystone Technologies”) offers a Keystone Standard LED Lamp Warranty. Keystone Technologies warrants that the lamps below will be free of defects in material and workmanship and comply with their respective published specifications, from the date of installation, for the 5 years and subject to the terms and conditions herein. This warranty applies only to lamps that are operated a maximum of 8,760 hours/year (equal to 24 hours/day, 365 days/year). If lamps fail to operate for the warranty period, Keystone will, at its sole discretion, provide a free replacement lamp (but no labor allowance) or issue a credit for future purchase. Lamp warranty does not apply to vapor-tight fixture applications, unless explicitly stated in a warranty supplement letter from Keystone Technologies
View AllClose

Additional Information

Lamp Shape:
T8
Operation Type:
Type B (Bypass)
Wiring Method:
Single or Double Ended
Wattage:
25 W
Length:
47.15 in.
Lumens:
3000
Lumens per Watt:
120
Life Hours:
50000
CRI:
80+
Color Temperature (CCT):
5000K
Voltage:
120/208/240/277 V
Base Type:
Medium Bi-Pin
Dimmable:
No
Equivalent:
32 W
View AllClose
