Keystone Advanta - 8 in. Commercial Can Retrofit - 120-277 Volt | Power and Color Select - 3350 Lumens - High CRI - 0-10V & 120V Dimmable - Pre-installed 26 in. Flex Conduit - KT-RDLED30PS-8A-9CSF-CDIM

(No reviews yet) Write a Review
SKU:
31590
UPC:
843654168876
MPN:
KT-RDLED30PS-8A-9CSF-CDIM
Condition:
New
Shipping:
Calculated at Checkout

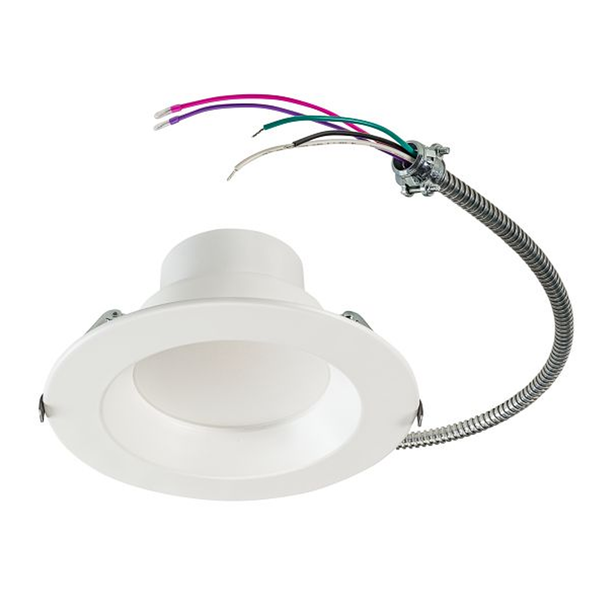

  • Keystone-KT-RDLED30PS-8A-9CSF-CDIM-image-01
  • Keystone-KT-RDLED30PS-8A-9CSF-CDIM-image-02
  • Keystone-KT-RDLED30PS-8A-9CSF-CDIM-image-03
  • Keystone-KT-RDLED30PS-8A-9CSF-CDIM-image-04
$49.61
  • Keystone-KT-RDLED-8A-BN-TRIM-image-01
Frequently bought together:

Description

  • Field adjustable power switch to select between 16W, 20W, 23W, 27W, and 30W outputs.
  • Comes with a field-adjustable CCT switch that allows you to choose between 2700K, 3000K, 3500K, 4000K, and 5000K color temperatures.
  • Ideal for new construction, remodel, and retrofit applications.
  • Long-life, high-efficacy LEDs with a 80,000 life hour rating.
  • Pre-installed 26 inch five-wire flex conduit lead.
  • 0-10VDC dimming down to 10%, Triac and ELV dimming 120V.
  • 5-year, limited manufacturer warranty.

Elevate your next commercial project with the Advanta Downright Series from Keystone Technologies. Featuring a deep regressed design for enhanced visual comfort, an integrated Keystone driver, and a flexible metal wiring conduit, these recessed downlights deliver a clean, modern aesthetic ideal for new construction. Advanta makes upgrading from outdated pin-based CFL fixtures simple-fitting seamlessly into existing frame kits, connecting directly to the junction box, and providing smooth, dimmable, energy-efficient LED illumination. Each model includes a reliable Keystone driver with combination dimming (0-10V, TRIAC, and reverse phase) to ensure compatibility across diverse lighting control systems. With five selectable color temperatures and five adjustable power outputs-all configurable at the touch of a switch-Advanta offers the versatility of 25 fixtures in one, reducing SKUs while maximizing flexibility. Designed for performance and peace of mind, these airtight, Type IC-rated downlights are safe for insulated ceilings and engineered for efficient heat dissipation to help lower energy costs.

Adjust the wattage of the fixture to optimize maximum brightness. Select between 16 watt, 20 watt, 23 watt, 27 watt, and 30 watt settings. Can be dimmed down for further control with 0-10V dimming.
Change the look and feel of your fixture by switching the color temperature. Each fixture comes with a switch that selects between 2700K warm white, 3000K soft white, 3500K neutral white, 4000K cool white, and 5000K daylight white color temperatures.
Insulated ceilings aren't a problem for Advanta LED recessed downlights. With airtight, Type IC-rated construction, they can be used safely in areas in contact with fiberglass or cellulose insulation. The efficient heat loss dissipation helps keep down energy bills.

Listings & Certifications

ETL

logo of ETL listed

Energy Star

Energy Star logo

RoHS

logo of RoHS

Title 24

California Title 24 compliant logo
View AllClose

Warranty Information

Keystone Technologies, LLC., P.O. Box 246, Ambler, PA 19002, (215) 283-2600 (hereinafter called €œKeystone Technologies€) warrants to the purchaser of its LED fixtures, retrofit kits, and light engines (hereinafter called €œlighting components€) to be free of defects in material and workmanship and comply with their respective published specifications, from the date of installation, for time periods outlined below and subject to the terms and conditions herein. This warranty applies to fixtures that are operated within usage limit, 8,760 hours per year for a total of 5 years. If fixtures fail to operate for the warranty period, Keystone will, at its sole discretion, provide a free replacement fixture (but no labor allowance) or issue a credit for future purchase. This warranty is not applicable if the lighting component is not installed in accordance with the National Electric Code, the Standards for Safety of Underwriters Laboratories, Inc., Standards for the American National Standards Institute, or the Canadian Standards Association. This warranty is also not applicable if the lighting component is not installed according to Keystone Technologies instructions or recommendations or if the product has been exposed to abnormal operating conditions including excessive temperatures. For more information please go to www.keystonetech.com
View AllClose

Additional Information

Manufacturer:
Keystone Technologies
Brand / Product Series:
Advanta
MPN:
KT-RDLED30PS-8A-9CSF-CDIM
Model:
KT-RDLED30PS-8A-9CSF-CDIM
Wattage:
16/20/23/27/30 Watt
Equivalent:
(1) 26W to 42W CFL
Lumens:
2,050 to 3,350
Efficacy:
100 to 128 lumens / Watt
Color Temperature (CCT):
2700/3000/3500/4000/5000 Kelvin
Beam:
90°
Life Rating:
80,000 Hours
CRI:
90+
Size:
8 inch
Voltage:
120/208/240/277
Frequency:
60 Hz
Power Factor:
>0.90
Operating Temperature:
-13°F to 104°F
Dimmable:
Yes, 0-10V and 120V
Connection:
26-inch Flexible Conduit
Shape:
Round
Adjustable:
No
Housing Material:
Aluminum
Finish:
White
Lens Material:
Plastic
Trim Color:
White
Trim Design:
Smooth
IP Rating:
N/A
Location Rating:
Wet
Mounting:
Spring Clips
Length:
10.04 in.
Width:
10.04 in.
Height:
4.41 in.
UL:
No
ETL:
Yes
RoHS:
Yes
Energy Star:
Yes
Fire Rated:
No
FCC:
Yes
Air Tight:
Yes
NEC:
N/A
IC:
Yes
Title 20:
No
Title 24:
Yes
DLC:
No
DLC ID:
N/A
Warranty:
5-Year Manufacturer
