Description

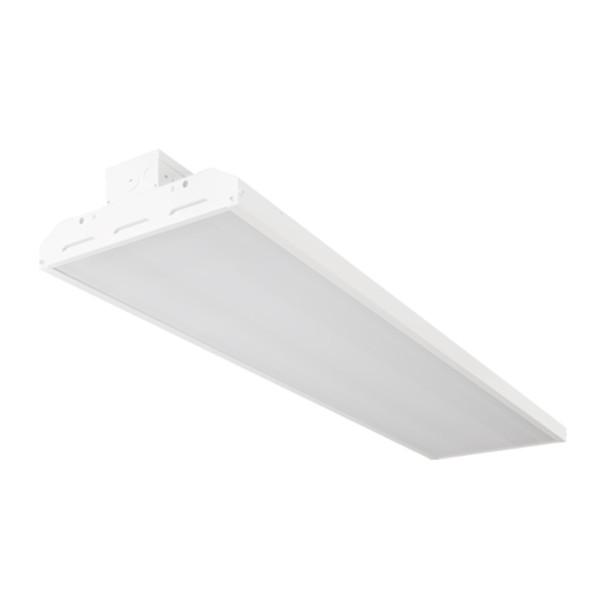

Portor’s Next Generation LED Linear High Bay provides high performance efficient and quality light output. Perfect for high ceiling commercial application. Portor can also provide in-house installation solution for accessories such as for Motion Sensor or Emergency Battery Back-up. Saving additional labor cost and installation lead time. Ideal use for commercial application such as large warehouse, parking/storage garage, gymnasium and retail stores with high ceiling.
Key Features
- Sleek slim design high bay with durable and solid form factor frame.
- Made out of quality aluminum alloy body with white finish
- Luminaire is built with high efficacy LED package 120V-277V universal drivers
- High performance light output perfect for high ceiling.
- Optic lens designed to reduce glare and improve light distribution through precision lens optics
- Over 50% every savings compare to fluorescent fixtures.
- Low heat production from LED technology will require overall less maintenance and operating cost
- Comes standard with V-Hooks and chains
- Option available for dimmers, occupancy sensors and daylight harvesting to maximize energy savings.
- UL Listed, RoHS, DLC Premium Listed
- 5 Years Limited Warranty
- 50,000+ hour lifetime
Specifications
| SKU | 28228 |
| Manufacturer | Portor Lighting |
| Brand | Portor |
| Manufacturer Part No. | PT-LHB-210W-2CCT |
| Model | PT-LHB-210W-2CCT |
| UPC | 686294598616 |
| Fixture Type | Linear High Bay |
| Light Technology | LED |
| Wattage | 210 Watt |
| Equivalent | 8xT5HO Fluorescent |
| Life Hours | 50,000 Hours |
| Color Rendering (CRI) | 80+ |
| Lumens | 28350 |
| Efficacy (LPW) | 139 |
| Color Temperature (CCT) | 4000K or 5000K |
| Voltage | 120/208/240/277 V |
| Frequency | 50/60 Hz |
| Power Factor | >0.90 |
| THD | <10% |
| Surge Protection | N/A |
| Dimmable | Yes |
| Dimming Type | 0-10 V |
| Housing | Aluminum |
| Mounting | V-Hook and Chain |
| Lens | Plastic |
| Finish | White |
| Operation Temperature | -40°F to 104°F |
| Length | 45.9 in. |
| Width | 12.6 in. |
| Height | 3.6 in. |
| Weight | N/A |
| DLC | Yes |
| DLC ID | S-ODAZIC |
| Energy Star | No |
| Environment | Damp Locations |
| UL | Yes |
| ETL | No |
| IP Rating | N/A |
| RoHS | Yes |
| Warranty | 5-Year |
Warranty Information
Portor Industry, Inc. warrants goods sold to purchaser from defects in material and workmanship within our warranty period from the date of shipping (proof of purchase required), for a period of 5 (five) years. See warranty attachment for more details.
View AllClose
Additional Information
Wattage: |
210 W |
Lumens: |
28350 |
Lumens per Watt: |
139 |
Voltage: |
120/208/240/277 V |
Color Temperature (CCT): |
4000K or 5000K |
CRI: |
80+ |
Dimmable: |
Yes |
Power Factor: |
>0.9 |
Mounting: |
V-Hook |
Finish: |
White |
Options: |
Standard |
