Description
- Field adjustable power switch to select between 150W, 200W, and 240W outputs.
- Comes with a field-adjustable CCT switch inside the fixture that allows you to choose between 3000K, 4000K, and 5000K color temperatures.
- Fixture comes with a hook for suspension mounting.
- Expansion port for add-on sensors.
- Built in 6kV + 6kV surge protection.
- Long-life, high-efficacy LEDs with a 100,000 life hour rating.
- Excellent replacement for 350 watt to 400 watt HID fixtures.
- 5-year, limited manufacturer warranty.

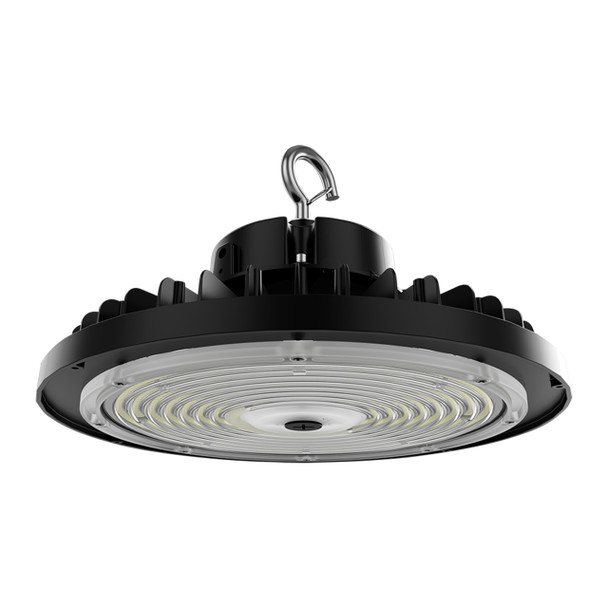

With the standard model clocking in at only a 9" diameter and the XL at just over 12", the H15 family is as compact as high bays get, but don't let its size fool you—it's powerful enough to replace up to 750W MH. The H15 comes in two compact sizes, each with three selectable CCTs and wattages, making it versatile enough to handle countless applications with super-tight budgets. Both models include an expansion port that makes it easy to add standard or Lightcloud Blue-enabled PIR and microwave sensors. A battery backup is also available.
Adjust the wattage of the fixture to optimize maximum brightness. Select between 150 watt, 200 watt, and 240 watt settings. Can be dimmed down for further control with 0-10V dimming.
Change the look and feel of your fixture by switching the color temperature. Each fixture comes with a switch that selects between 3000K soft white, 4000K cool white, and 5000K daylight color temperatures.
Comes standard with a hanging hook and a 6-foot cord. Heavy-duty 3/4"-14 NPT hook and 3/4"-14 pendant mount capable (pendant by others).
Precision die-cast aluminum housing with a finish formulated for high durability and long lasting color. Polycarbonate lens for diffused and even light spread. Rated lifespan of 100,000 hours backed by a 5-year limited manufacturer warranty.
Listings & Certifications
UL
RoHS
IP65
DLC
Warranty Information
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
View AllClose
Additional Information
Manufacturer: |
RAB Lighting |
Brand / Product Series: |
RAB |
MPN: |
H15XLB |
Model: |
H15XLB |
Wattage: |
150/200/240 Watt |
Equivalent: |
400-750 Watt Metal Halide |
Lumens: |
22,427-35,618 |
Efficacy: |
135-169 lumens / Watt |
Color Temperature (CCT): |
3000/4000/5000 Kelvin |
Life Rating: |
100,000 Hours |
CRI: |
80+ |
Voltage: |
120/208/240/277 |
Frequency: |
50/60 Hz |
Power Factor: |
>0.90 |
THD: |
<10% |
Surge Protection: |
6kV + 6kV |
Dimmable: |
Yes, 0-10V |
Options: |
Standard |
Mounting: |
Hook |
Housing Material: |
Aluminum |
Finish: |
Black |
Lens Material: |
Polycarbonate |
IP Rating: |
IP65 |
Location Rating: |
Wet |
Length: |
12.19 in. |
Width: |
12.19 in. |
Height: |
5.44 in. |
Weight: |
6.3 lbs |
UL: |
Yes |
ETL: |
No |
RoHS: |
Yes |
Energy Star: |
No |
FCC: |
N/A |
DLC: |
Yes |
DLC ID: |
S-H250NX |
Warranty: |
5-Year Manufacturer |
