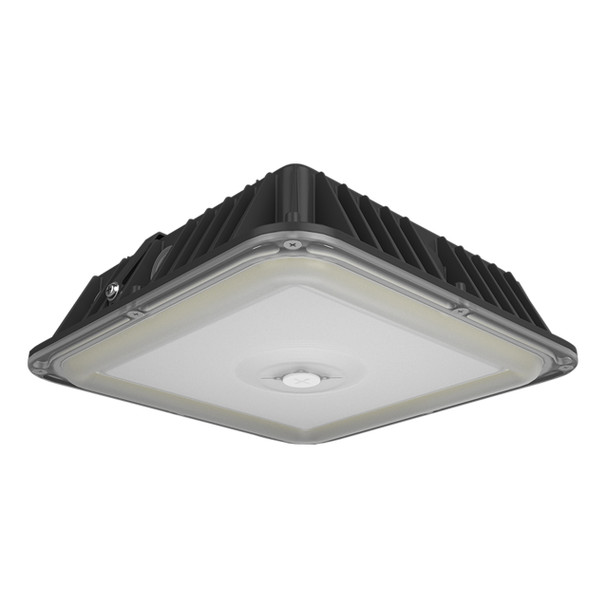

RAB VAN17-90 LED Vandal-Proof Canopy Light - Power Adjust

12929 Lumens - Replaces 400W Metal Halide - Color Adjust - 120-277 Volt - Bronze - Integrated Photocell
(No reviews yet) Write a Review
SKU:24280
UPC:192552033084
MPN:VAN17-90
Condition:New
Shipping:Free Shipping
    • Field adjustable power switch to select between 70W, 80W, and 90W outputs.
    • Comes with a field-adjustable CCT switch inside the fixture that allows you to choose between 3000K, 4000K, and 5000K color temperatures.
    • Integrated photocontrol adds optional dusk-to-dawn functionality.
    • Vandal-resistant polycarbonate textured opaque for low-glare lens.
    • Mounts to most junction boxes using the included mounting plate.
    • Built in surge protection.
    • Long-life, high-efficacy LEDs with a 100,000 life hour rating.
    • 5-year, limited manufacturer warranty.
    • RAB-VAN17-90-image-01
    • RAB-VAN17-90-image-02
    • RAB-VAN17-90-image-03
    • RAB-VAN17-90-image-04
    $172.00
    Frequently bought together:

    Description

    The RAB VAN17 series are ultra-low profile, vandal resistant, and sensor ready. They are affordable solution for everyday canopy and garage lighting. With adjustable wattage, adjustable CCT, and an on/off photocell, the VAN17 drastically reduces SKU count while maximizing flexibility in the field. Models are available in bronze and white, and in two sizes which cover the footprint of most old HID canopy lighting. The VAN17 boasts a square perimeter of LEDs that results in a wider, more evenly distributed output and eliminates glare. It’s also vandal resistant and has an ultra-high efficacy of up to 157 lm/W.

    Adjust the wattage of the fixture to optimize maximum brightness. Select between 70 watt, 80 watt, and 90 watt settings. Can be dimmed down for further control with 0-10V dimming.
    Change the look and feel of your fixture by switching the color temperature. Each fixture comes with a switch that selects between 3000K soft white, 4000K cool white, and 5000K daylight color temperatures.
    Each fixture comes with an optional ON/OFF photocontrol that enables the installer to introduce fixture-level power control. Enabling the photocontrol causes the fixture to turn on during the night and off during the day. When disabled, the fixture is controlled by switched power.
    The VAN17 includes an expansion port that makes it easy to screw on standard or Lightcloud Blue-enabled PIR and microwave sensors, which can be configured to adjust brightness and hold time, saving additional energy and costs. A remote is also available for an additional level of control.

    Listings & Certifications

    UL

    logo of the Underwriters Laboratory

    DLC

    DLC logo

    RoHS

    logo of RoHS

    IP65

    IP logo
    View AllClose

    Warranty Information

    View AllClose

    Additional Information

    View AllClose

    Specifications

    Manufacturer:
    RAB Lighting
    Brand / Product Series:
    RAB
    MPN:
    VAN17-90
    Model:
    VAN17-90
    Wattage:
    70/80/90 Watt
    Equivalent:
    400 Watt Metal Halide
    Lumens:
    9,726-12,929
    Efficacy:
    135-154 lumens / Watt
    Color Temperature (CCT):
    3000/4000/5000 Kelvin
    Life Rating:
    100,000 Hours
    CRI:
    80+
    Voltage:
    120/208/240/277
    Frequency:
    50/60 Hz
    Power Factor:
    >0.87
    THD:
    <10%
    Surge Protection:
    L-N: 4kV L/N-PE: 6kV
    Operating Temperature:
    -40°F to 122°F
    Dimmable:
    Yes, 0-10V
    Options:
    Standard
    Mounting:
    Junction Box
    Housing Material:
    Aluminum
    Finish:
    Bronze
    Lens Material:
    Polycarbonate
    IP Rating:
    IP65
    Location Rating:
    Wet
    Length:
    10 in.
    Width:
    10 in.
    Height:
    3 in
    Weight:
    4.2 lbs
    UL:
    Yes
    ETL:
    No
    RoHS:
    Yes
    Energy Star:
    No
    FCC:
    No
    DLC:
    Yes
    DLC ID:
    S-MK2SMR
    Warranty:
    5-Year Manufacturer

    Warranty

    The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
