Description
- Selectable Power Setting: Field adjustable power switch to select between 6W, 9W, and 12W outputs.
- Selectable Color Temperature: Comes with a field-adjustable CCT switch that allows you to choose between 2700K, 3000K, 3500K, 4000K, and 5000K color temperatures.
- Long Life: Long-life, high-efficacy LEDs with a 50,000 life hour rating.
- Canless Design: No housing required for installation.

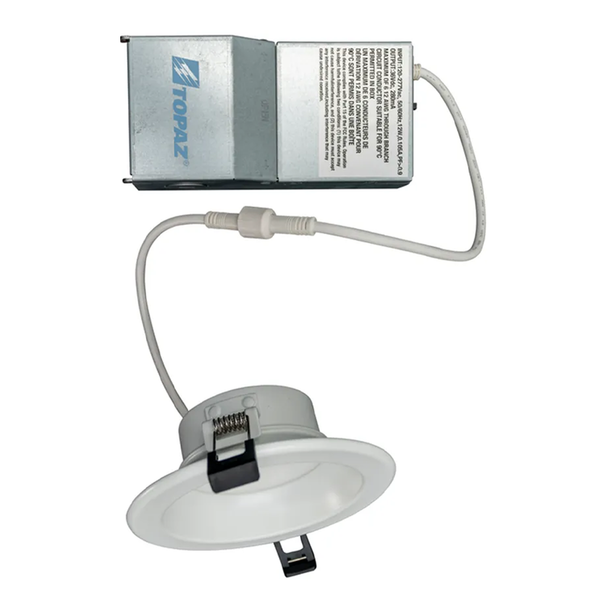

- Remote Electrical: Utilizes a remote driver with built-in junction box and quick disconnect.
- Easy Install: Spring clips and quick-connects allow for hassle free installation.
- Applications: Commercial, multi-family, hospitality, medical, retail, and education.
- Dimming: 0-10VDC dimming standard down to 10%.
- Warranty: 5-year, limited manufacturer warranty.
Improve commercial indoor spaces with this extensive family of Canless Downlights with an internal driver featuring Power and 5CCT Selectability. This wet location rated fixture is 120-277V with 0-10V dimming and is available in a variety of color trim finishes. Emergency Battery backup and other convenient mounting accessories are available.
Adjust the wattage of the fixture to optimize maximum brightness. Select between 6 watt, 9 watt, and 12 watt settings. Can be dimmed down for further control with 0-10V dimming.
Change the look and feel of your fixture by switching the color temperature. Each fixture comes with a switch that selects between 2700K warm white, 3000K soft white, 3500K neutral white, 4000K cool white, and 5000K daylight color temperatures.
All models use a universal, 120-277V driver with 0-10V dimming perfect for commercial offices, conference rooms, hallways, restaurants, education centers, hospitals, and airports. Suitable for insulated applications.
Features a remote LED dimming driver with a built-in junction box and quick disconnect, so there's no need for a traditional multi-piece fixture setup. The installation saves time, and energy efficiency saves money.
Listings & Certifications
ETL
Energy Star
RoHS
Title 24
Warranty Information
Halco Lighting Technologies, 2940 Pacific Drive, Norcross, GA 30071, warrants to the purchaser that Halco lamps will be free from defect in material and or workmanship from the date of installation for (5) years based on the product's L70 rated life.
View AllClose
Additional Information
Manufacturer: |
Topaz Lighting |
Brand / Product Series: |
Topaz |
MPN: |
75869 |
Model: |
CDL4S-RM-12WPCS-U |
Wattage: |
6/9/12 Watt |
Equivalent: |
(1) 18W to 26W CFL |
Lumens: |
630 to 1,100 |
Efficacy: |
85 lumens / Watt |
Color Temperature (CCT): |
2700/3000/3500/4000/5000 Kelvin |
Beam: |
95° |
Life Rating: |
50,000 Hours |
CRI: |
90+ |
Size: |
4 inch |
Voltage: |
120/208/240/277 |
Frequency: |
50/60 Hz |
Power Factor: |
>0.90 |
Dimmable: |
Yes, 0-10V |
Connection: |
Remote Junction Box |
Shape: |
Round |
Adjustable: |
No |
Housing Material: |
N/A |
Finish: |
White |
Lens Material: |
Plastic |
Trim Color: |
White |
Trim Design: |
Smooth |
IP Rating: |
N/A |
Location Rating: |
Wet |
Mounting: |
Spring Clips |
Length: |
5.04 in. |
Width: |
5.04 in. |
Height: |
1.98 in. |
UL: |
No |
ETL: |
Yes |
RoHS: |
Yes |
Energy Star: |
Yes |
Fire Rated: |
No |
FCC: |
N/A |
Air Tight: |
Yes |
NEC: |
No |
IC: |
No |
Title 20: |
No |
Title 24: |
Yes |
DLC: |
No |
DLC ID: |
N/A |
Warranty: |
5-Year Manufacturer |
