Description
- Selectable Power Setting: Field adjustable power switch to select between 15W, 20W, and 25W outputs.
- Selectable Color Temperature: Comes with a field-adjustable CCT switch that allows you to choose between 3500K, 4000K, and 5000K color temperatures.
- Battery Backup: Factory installed emergency battery backup for 90-minutes of EM illumination.
- Mounting Surface mount with included j-box cover plate.
- Dimming: Dimmable by 0-10V standards down to 10%.
- Long Life: Long-life, high-efficacy LEDs with a 50,000 life hour rating.
- Replaces: Excellent replacement for 2-lamp 17 Watt (T8) fluorescent fixtures.
- Warranty: 5-year, limited manufacturer warranty.

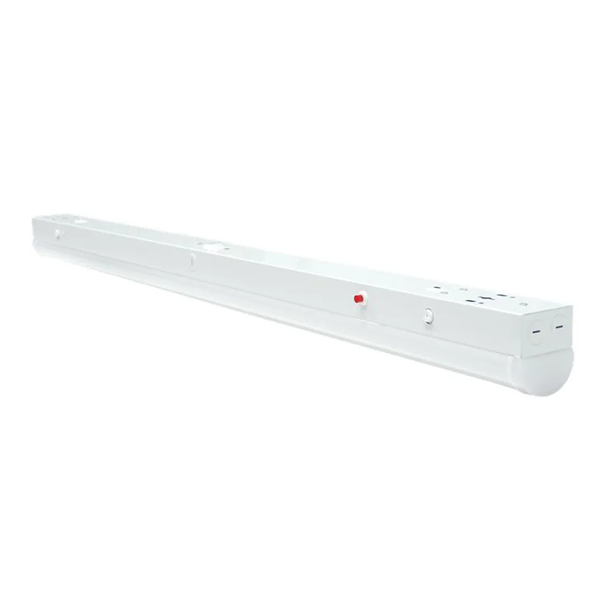

The Topaz Lighting LED Linear Strip with power and color temperature selectable technology is an ideal solution for new construction or remodeling of commercial facilities, offices, health care locations, education instructions, and retail spaces. These fixtures feature press to release buttons that allow for quick tool-less access to the wiring compartment.
Adjust the wattage of the fixture to optimize maximum brightness. Select between 15 watt, 20 watt, and 25 watt settings. Can be dimmed down for further control with 0-10V dimming.
Change the look and feel of your fixture by switching the color temperature. Each fixture comes with a switch that selects between 3500K neutral white, 4000K cool white, and 5000K daylight color temperatures.
Fixture comes with a factory installed emergency backup battery that provides 90 minutes of emergency illumination in the case of power failure. Wired for 120-77 Volt.
Listings & Certifications
UL
RoHS
Battery Backup
DLC
Warranty Information
Halco Lighting Technologies, 2940 Pacific Drive, Norcross, GA 30071, warrants to the purchaser that Halco lamps will be free from defect in material and or workmanship from the date of installation for (5) years based on the product's L70 rated life.
View AllClose
Additional Information
Manufacturer: |
Topaz Lighting |
Brand / Product Series: |
Topaz |
MPN: |
76951 |
Model: |
LS2-25WPCS-D-EM |
Wattage: |
15/20/25 Watt |
Equivalent: |
(2) F17T8 |
Lumens: |
2,250-3,500 |
Efficacy: |
140-150 lumens / Watt |
Color Temperature (CCT): |
3500/4000/5000 Kelvin |
Life Rating: |
50,000 Hours |
CRI: |
80+ |
Voltage: |
120/208/240/277 |
Frequency: |
60 Hz |
Power Factor: |
>0.90 |
THD: |
<20% |
Surge Protection: |
N/A |
Dimmable: |
Yes, 0-10V |
Options: |
Battery Backup |
Mounting: |
Surface |
Housing Material: |
Steel |
Finish: |
White |
Lens Material: |
Polycarbonate |
IP Rating: |
N/A |
Location Rating: |
Damp |
Nominal Length: |
2 ft. |
Length: |
23.97 in. |
Width: |
2.95 in. |
Height: |
3.26 in. |
Weight: |
2.3 lbs |
UL: |
Yes |
ETL: |
No |
RoHS: |
Yes |
NSF: |
No |
Energy Star: |
No |
NEC: |
Yes |
FCC: |
No |
Title 20: |
No |
Title 24: |
No |
DLC: |
Yes |
DLC ID: |
S-Y00KHQ |
Warranty: |
5-Year Manufacturer |
