Description
- Great for applications requiring an attractive, edge-lit exit sign while remaining budget-friendly.
- Provides ceiling, wall, recessed, and end mounting capability, all in one box.
- Thermoplastic housing is impact-resistant, scratch-resistant, and corrosion-proof.
- Nickel metal hydride battery delivers 90 minutes of emergency capacity.
- Test switch provides manual activation of 30-second diagnostic testing for on-demand visual inspection.
- 8mm thick acrylic panel provides uniform illumination without shadows or hot spots.
- 0-180° swivel mounting capability for standard or sloped ceilings.
- Single- or double-face mirror panel.

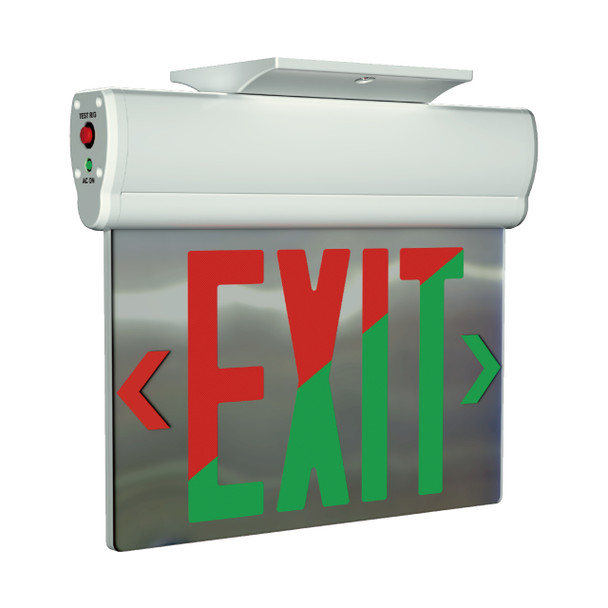

The ELX eliminates the guesswork from exit sign installation. With comprehensive mounting hardware included in every box, you can tackle wall, ceiling, recessed, or sloped ceiling applications. And with field-selectable red/green colors included as well, the ELX reduces inventory needs while ensuring you always have the right exit sign for any project. The ELX boasts a unique swivel capability that keeps your signage perpendicular on sloped installations.
Each exit sign comes with a selectable dip switch that adjust the letter color from red to green. Press and hold the test switch for 2-seconds to adjust.
Panel has a silver mylar background that can be kept on for single-face applications. If double sided is need, simply peel away.
The ELX boasts a unique swivel capability that keeps your signage perpendicular on sloped installations. Can be Rotated Up To 180°. Wall mounting can be completed by rotating the mounting bracket 90°.
Provides ceiling, wall, recessed, and end mounting capability, all in one box.
Listings & Certifications
UL
RoHS
Title 20
Warranty Information
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of three (3) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
View AllClose
Additional Information
Manufacturer: |
RAB Lighting |
Brand / Product Series: |
RAB |
MPN: |
ELX-MP |
Model: |
ELX-MP |
Voltage: |
120/208/240/277 |
Wattage: |
1.7 Watt |
Life Rating: |
N/A |
Letter Color: |
Red & Green |
# of Faces: |
Double |
Panel Finish: |
Mirror |
Chevrons: |
Field Install |
Housing Color: |
White |
Housing Material: |
Thermoplastic |
Mounting: |
Recessed & Surface |
Battery Type: |
Nickel-Metal Hydride |
Battery Capacity: |
N/A |
Emergency Power: |
90 Min |
Recharge Time: |
24 Hour |
Remote Capable: |
No |
Location Rating: |
Damp |
Test Switch: |
Integrated |
Charge Indicator: |
Integrated |
Length: |
4.32 in. |
Width: |
12.25 in. |
Height: |
10.57 in. |
UL: |
Yes |
RoHS: |
Yes |
Title 20: |
Yes |
Warranty: |
3-Year Manufacturer |
