Description
- Field adjustable power switch to select between 260W, 320W, and 400W outputs.
- Comes with a field-adjustable CCT switch that allows you to choose between 3500K, 4000K, and 5000K color temperatures.
- Lens can be remove and rotated to switch between general use and aisle use distributions.
- Fixture comes with a v-hooks and 3.28 ft. chains for mounting.
- Compact low-profile design only 2.13" in height.
- Long-life, high-efficacy LEDs with a 100,000 life hour rating.
- Excellent replacement for 10-lamp (T5HO) fluorescent or 1000 Watt HID fixtures.
- 5-year, limited manufacturer warranty.

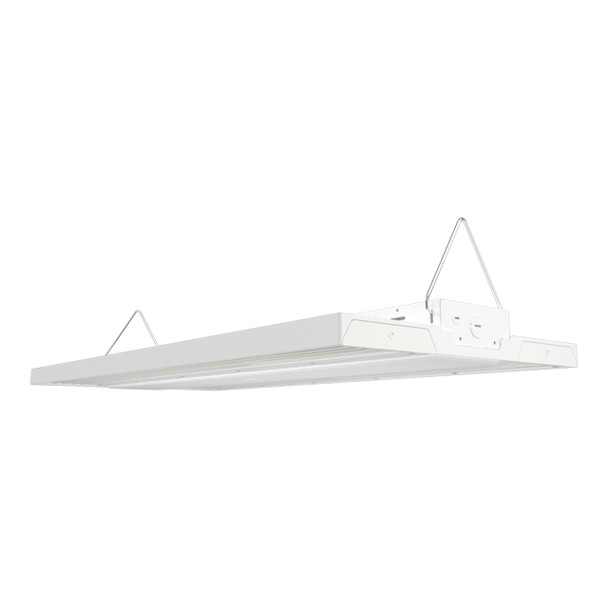

The RBAY15 brings premium features to an economy price point, with field-adjustable wattage and color temperature. It can also change from standard to aisle lighting optics with a simple rotation of the lens! Choose between 90x90° or 45x110° to get the distribution your space requires. The included V-hook/chain mount makes installation a breeze, but accessories are also available for pendant and surface mount applications, making it ideal for a wide range of commercial and industrial applications, from warehouses and manufacturing facilities to storage areas and retail back-of-house spaces where both performance and value matter.
Adjust the wattage of the fixture to optimize maximum brightness. Select between 260 watt, 320 watt, and 400 watt settings. Can be dimmed down for further control with 0-10V dimming.
Change the look and feel of your fixture by switching the color temperature. Each fixture comes with a switch that selects between 3500K neutral white, 4000K cool white, and 5000K daylight color temperatures.
The fixture lens is removeable allowing you to flip it to change the light distribution. Choose between 90° x 90° general use and 45° x 110° for aisle use.
The RBAY15 includes a sensor port for easy installation of standard PIR and MVS sensors, sold separately.
Listings & Certifications
UL
RoHS
IP20
DLC
Warranty Information
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
View AllClose
Additional Information
Manufacturer: |
RAB Lighting |
Brand / Product Series: |
RAB |
MPN: |
RBAY15L |
Model: |
RBAY15L |
Wattage: |
260/320/400 Watt |
Equivalent: |
10-Lamp T5HO / 1000 Watt Metal Halide |
Lumens: |
38,323-61,016 |
Efficacy: |
132-173 lumens / Watt |
Color Temperature (CCT): |
3500/4000/5000 Kelvin |
Life Rating: |
100,000 Hours |
CRI: |
80+ |
Voltage: |
120/208/240/277 |
Frequency: |
50/60 Hz |
Power Factor: |
>0.90 |
THD: |
<10% |
Surge Protection: |
L/N-PE: 6kV, L-N: 6kV |
Dimmable: |
Yes, 0-10V |
Options: |
Standard |
Mounting: |
V-Hook |
Housing Material: |
Aluminum |
Finish: |
White |
Lens Material: |
Polycarbonate |
IP Rating: |
IP20 |
Location Rating: |
Damp |
Length: |
29.5 in. |
Width: |
13.75 in. |
Height: |
2.13 in. |
Weight: |
12.7 lbs |
UL: |
Yes |
ETL: |
No |
RoHS: |
Yes |
Energy Star: |
No |
FCC: |
N/A |
DLC: |
Yes |
DLC ID: |
S-CPV1Q9 |
Warranty: |
5-Year Manufacturer |
