Description
- Input: 60 mA, 120-277 VAC, 50/60 Hz.
- Output: 10 Watt, 15-54 VDC.
- Battery: Hi-temp, maintenance-free, Lithium Ion, 24-hour recharge time.
- Emergency Mode: Provides 90 minutes of emergency lighting.
- 2-in-1 Switch: Bi-color illuminated plenum rated test switch.
- Self-Testing: Code-compliant self-testing mode.

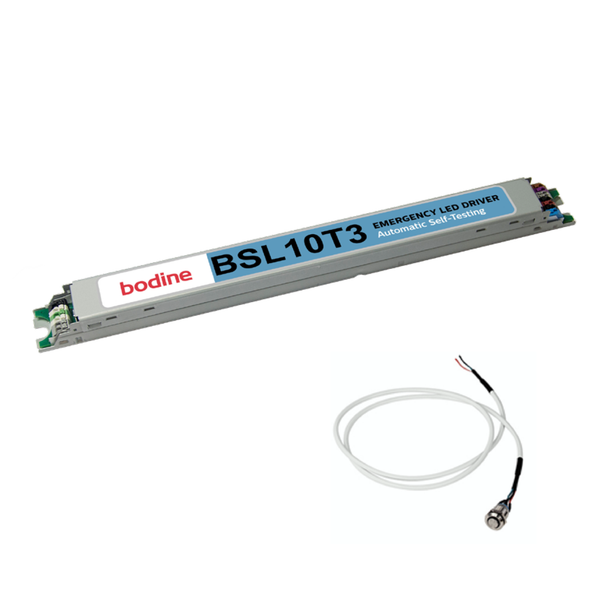

The BSL10T3 is UL Listed for factory or field installation and allows the same LED luminaire to be used for normal and emergency operation. The emergency LED driver works in conjunction with an AC LED driver that has an output current not to exceed 5. 0A to convert new or existing LED fixtures into emergency lighting. The emergency driver consists of a high-temperature maintenance free lithium ion battery, charger, and electronic circuitry contained in one metal enclosure. The BSL10T3 is capable of delivering an initial minimum power of 10 watts to an LED load (15- 54 VDC) for a minimum of 90 minutes. If used in an emergency-only fixture, no AC driver is necessary. The BSL10T3 is suitable for indoor and damp locations, and for installation in sealed and gasketed fixtures, including fixtures rated for wet locations. For more information about specific LED and AC driver compatibility, please contact Technical Support.
Listings & Certifications
UL
IP
EM Battery
Title 20
Additional Information
Manufacturer: |
Signify |
Brand / Product Series: |
Bodine |
MPN: |
BSL10T3UAK55PKI2 |
Model: |
BSL10T3UAK55PKI2 |
Battery Type: |
Lithium |
Battery Duration: |
90 min. |
Input Voltage: |
120/208/240/277 VAC |
Input Frequency: |
50/60 Hz |
Input Current: |
60mA Max. |
Output Power: |
10 Watt |
Output Voltage: |
15 to 54 VDC |
Output Current: |
N/A |
Self Testing: |
Yes |
Dimmable: |
No |
Connection: |
Poke-In |
Includes: |
Indicator Light and Test Switch |
IP Rating: |
IP65 |
Location Rating: |
N/A |
Life Rating: |
N/A |
Length: |
14.17 in. |
Width: |
1.18 in. |
Height: |
1.0 in. |
UL: |
Yes |
FCC: |
Yes |
RoHS: |
Yes |
CEC: |
Yes |
Warranty: |
5-Year Manufacturer |
