Description
- Input: 4 Watt, 120-277 VAC, 50/60 Hz.
- Output: 10 Watt, 12-52 VDC.
- Battery: Hi-temp, maintenance-free, Nickel Cadmium, 24-hour recharge time.
- Emergency Mode: Provides 90 minutes of emergency lighting.
- 2-in-1 Switch: Bi-color illuminated plenum rated test switch.
- Self-Testing: Code-compliant self-testing mode.

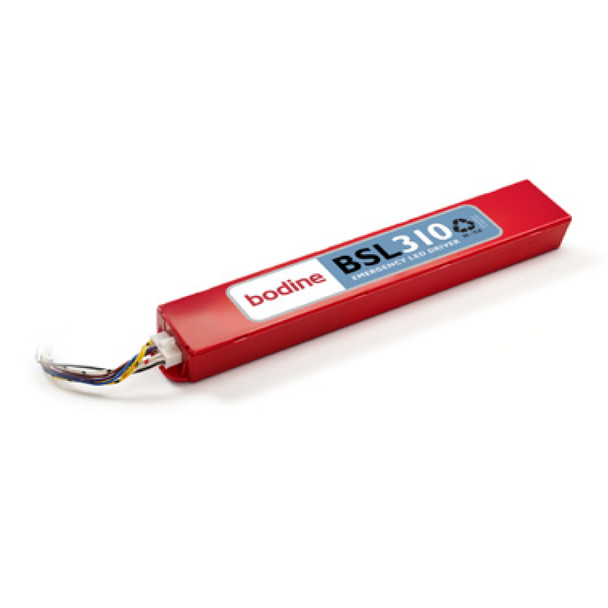

The BSL310 universal input (120-277 V) emergency LED driver works in conjunction with an AC LED driver that has an output current not to exceed 3.0 A. The emergency driver consists of a high temperature nickel-cadmium battery, charger and electronic circuitry in one case. The BSL310 can deliver up to 10.4 watts to an LED load (measured at nominal battery voltage) for 90 minutes. If used in an emergency-only fixture, no AC driver is necessary. The BSL310 is suitable for indoor and damp locations. For more information about specific LED and AC driver compatibility, please contact Technical Support.
Listings & Certifications
UL
RoHS
EM Battery
Title 20
Additional Information
Manufacturer: |
Signify |
Brand / Product Series: |
Bodine |
MPN: |
BSL3102WM |
Model: |
BSL3102WM |
Battery Type: |
Nickel-Cadmium |
Battery Duration: |
90 min. |
Input Voltage: |
120/208/240/277 VAC |
Input Frequency: |
50/60 Hz |
Input Current: |
N/A |
Output Power: |
10 Watt |
Output Voltage: |
12 to 52 VDC |
Output Current: |
N/A |
Self Testing: |
No |
Dimmable: |
No |
Connection: |
Wire Leads |
Includes: |
Indicator Light and Test Switch |
IP Rating: |
N/A |
Location Rating: |
Damp |
Life Rating: |
7-10 Year Battery |
Length: |
14.5 in. |
Width: |
1.18 in. |
Height: |
2.25 in. |
UL: |
Yes |
FCC: |
Yes |
RoHS: |
Yes |
CEC: |
Yes |
Warranty: |
5-Year Manufacturer |
