Description

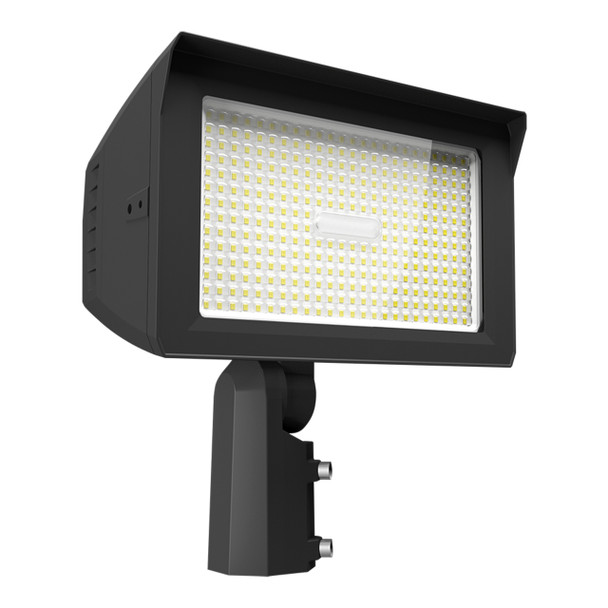

The X22 series not only gives you the flexibility of controlling beam angle, wattage, CCT, and photocell—it also comes with two mounting options right out of the box for a mind-blowing 144 SKUs in ONE SINGLE FLOODLIGHT! Models of the X22 are available in both white and bronze with an adjustable distribution that makes them the optimal floodlight for a large variety of general-purpose applications. All models also come standard with 0-10V dimming.
Key Features
- Field Adjustable Light Output: 150W/125W/100W/75W.
- Color temperature selectable by 5000K, 4000K and 3000K.
- 120-277V selectable photocell that can be turned on and off.
- Adjustable beam angles: 55°, 75° and 90°.
- Aluminum housing with tempered glass lens.
- Slipfitter for mounting on 2 3/8" tenon with 180° adjustability.
- Trunnion mount included.
- LED driver is wired for 0-10V dimming down to 10%.
- Ingress protection rating of IP65 for dust and water.
- 5-year, limited manufacturer warranty.
Specifications
| SKU | 28899 |
| Manufacturer | RAB Lighting |
| Brand | RAB |
| Manufacturer Part No. | X22-150 |
| Model | X22-150 |
| UPC | 192552032773 |
| Fixture Type | Flood Light |
| Light Technology | LED |
| Wattage | 75, 100, 125 or 150 Watt |
| Equivalent | 400-750W Metal Halide |
| Life Hours | 50,000 Hours |
| Color Rendering (CRI) | 80+ |
| Lumens | 22797 |
| Efficacy (LPW) | 176 |
| Color Temperature (CCT) | 3000K, 4000K or 5000K |
| Beam Angle | 55°, 75° or 90° |
| NEMA Type | 7H X 6V, 6H X 6V or 6H X 6V |
| Voltage | 120/208/240/277 V |
| Frequency | 50/60 Hz |
| Power Factor | >0.90 |
| THD | <10% |
| Surge Protection | 6kV |
| Photocell | Integrated |
| Dimmable | Yes, down to 10% |
| Dimming Type | 0-10 V |
| Housing | Aluminum |
| Lens | Tempered Glass |
| Finish | Bronze |
| Operation Temperature | -22°F to 122°F |
| Length | 7.13 in. |
| Width | 11.25 in. |
| Height | 7.31 in. |
| Weight | 8.8 lbs. |
| DLC | No |
| DLC ID | N/A |
| Energy Star | No |
| Environment | Wet Locations |
| UL | Yes |
| ETL | No |
| IP Rating | IP65 |
| RoHS | Yes |
| Warranty | 5-Year |
Warranty Information
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
View AllClose
Additional Information
Wattage: |
75/100/125/150 W |
Lumens: |
22797 |
Lumens per Watt: |
176 |
Voltage: |
120/208/240/277 V |
Color Temperature (CCT): |
3000, 4000 or 5000K |
CRI: |
80+ |
Life Hours: |
50,000 Hours |
Dimmable: |
Yes, 0-10V |
Power Factor: |
>0.9 |
Mounting: |
Slipfitter & Trunnion |
Finish: |
Bronze |
